1083A

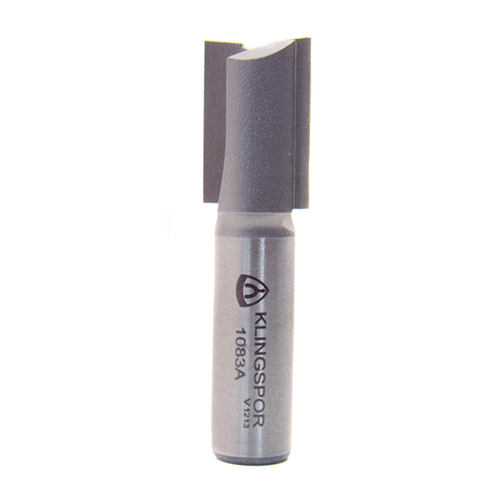

Cabinet Dado Straight Bit 23/32"CD x 1"CL, 1/2" Shank, 2 Flute
Item Number
1083A
Description
Cabinet Dado Straight Bit 23/32"CD x 1"CL, 1/2" Shank, 2 Flute
Product Details
The cutting diameter of this Cabinet Dado Straight Bit is designed to match undersized plywood, allowing accurate matching of wood cuts for plywood dados. The carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. The two-flute design delivers smooth, flat-bottom dados, ensuring clean, precise cuts for your woodworking projects. Perfect for achieving professional-quality results. Designed for router tables and CNC machines in a wide variety of applications. Two flute, carbide-tipped, straight bit with 23/32" cutting diameter, 1" cutting length, 1/2" shank, and 2-1/2" overall length for use with 1/2" collets.
| Width | 0.7188 |
| Length | 2.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-1/2 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 23/32 in. |
| Cut Length | 1 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
