1303

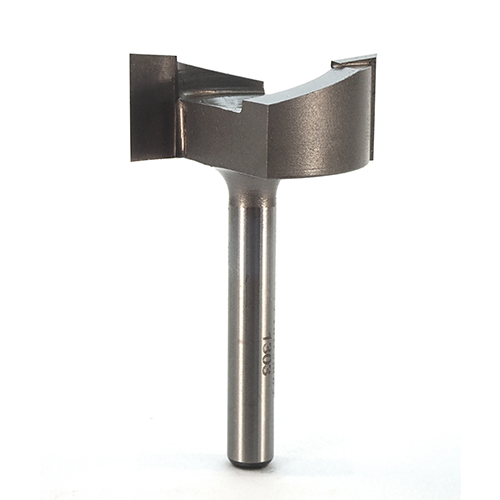

Mortise Bit 1-1/4"CD x 1/2"CL, 1/4" Shank, 2 Flute
Item Number
1303
Description
Mortise Bit 1-1/4"CD x 1/2"CL, 1/4" Shank, 2 Flute
Product Details
Mortise bits are for cutting shallow recesses on door hinges, locksets, and other joinery, delivering a precise rectangular recess for various woodworking applications. The mortise and tenon joints are most often used to join materials at right angles and require a tight fit. A carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Designed for hand-held routers, router tables, and CNC machines in a wide variety of applications. Two flute, carbide-tipped, mortising straight bit with 1-1/4" cutting diameter, 1/2" cutting length, 1/4" shank, and 2-1/8" overall length for use with 1/4" collets.
| Width | 1.25 |
| Length | 2.125 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-1/8 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 1-1/4 in. |
| Cut Length | 1/2 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
