Item Number
1374B
Description

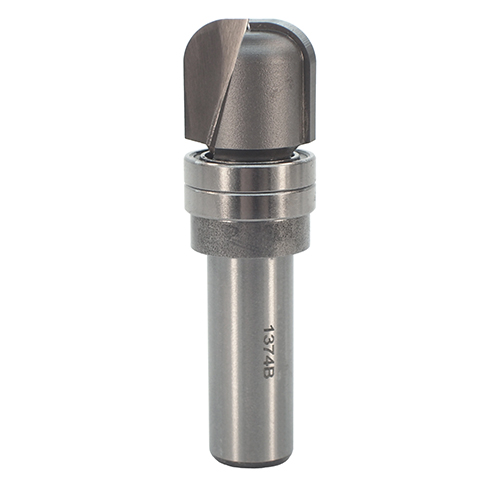

Bowl & Tray Bit with Bearing 1/4"Radius x 3/4"CD x 5/8"CL, 1/4" Shank
Product Details
Supplied with bearing on shank for pattern template routing. Bowl & Tray bits are used for dishing out and making flat bottomed grooves with curved edges. These rounded bits have a flat bottom for a smooth finish, so no ridges are left when cutting the bottom of a bowl or serving tray, offering as an alternative to traditional round nose bits. The carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Works effectively on natural woods, composite woods, and hard plastics for versatile, high-performance cutting and shaping. Designed for hand-held routers and router tables in a wide variety of applications. Carbide-tipped, bowl and tray form bit with 3/4" cutting diameter, 5/8" cutting length, 1/2" shank, 1/4" radius, and 2-3/8" overall length for use with 1/2" collets.
| Width | 0.75 |
| Length | 2.375 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-3/8 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 3/4 in. |
| Cut Length | 5/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 24,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
