Item Number
1440
Description

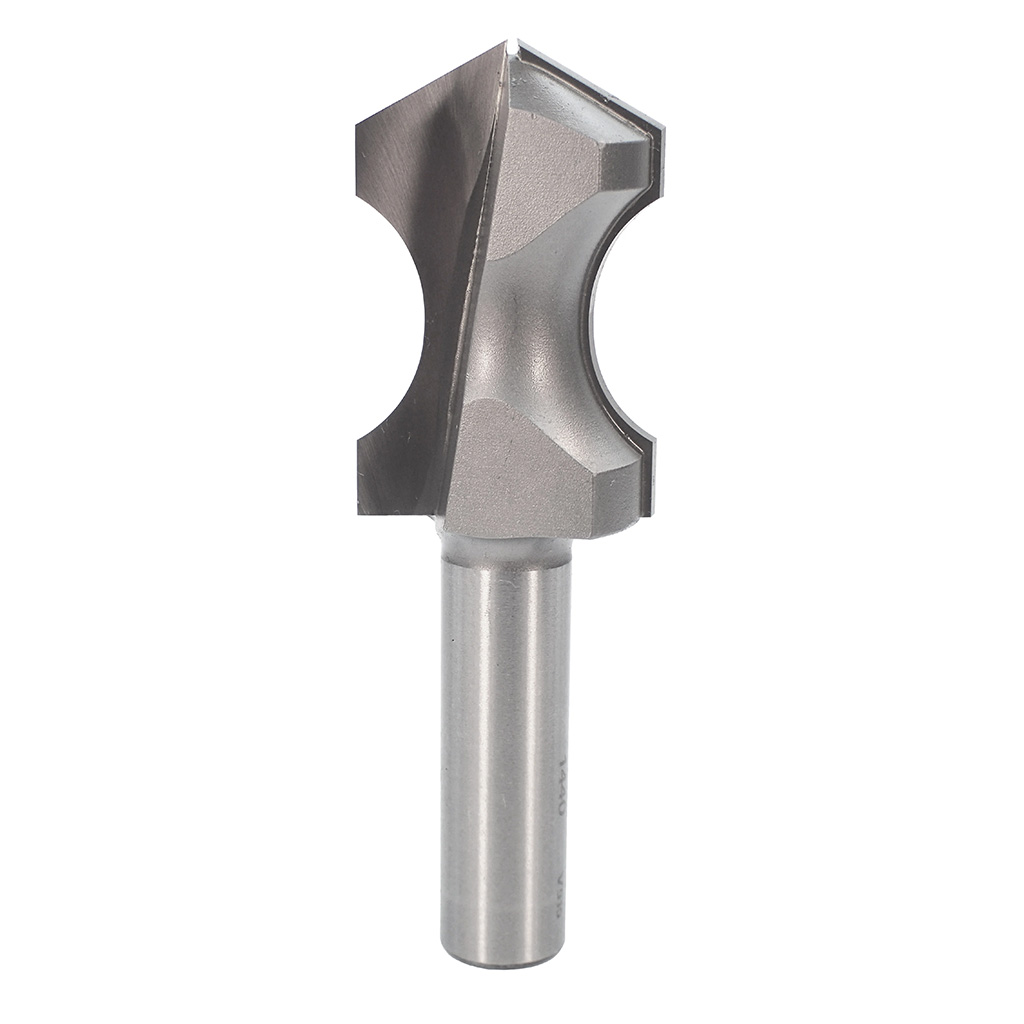

Plunge Cut Hand Grip Bit 7/8"B x 1/4"D x 1-3/8"CL
Product Details
Plunge Cut Hand Grip bit is used for plunging into the material and following a template (bearing and lock collar sold separately) to create a soft edge hand grip in drawers and doors. Use with B11 Bearing and LC-1/2 lock collar on shank for guide template routing. The carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Perfect for use on natural and composite woods, providing clean and precise cuts across a variety of surfaces. For CNC work, the plunge point allows for precise penetration into the center of the workpiece. Plunge cuts with hand router or router table are not recommended. Carbide-tipped, plunge cut hand grip bit with 7/8" bead opening, 1/4" bead depth, 1-3/8" cutting length, 1/2" shank, and 3-1/2" overall length for use with 1/2" collets.
| Width | 1.125 |
| Length | 3.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 3-1/2 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Length | 1-3/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
