Item Number
2200
Description

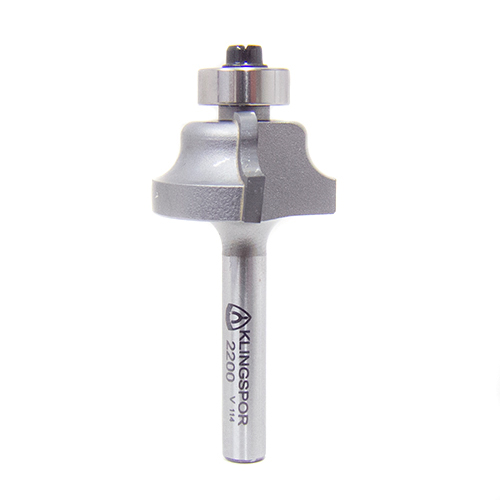

Roman Ogee Bit 5/32"R, 1-1/8"LD x 9/16"CL, 1/4" Shank
Product Details
Roman Ogee bits have a convex curve at the bearing and a concave curve at the top. It is a decorative profile that jazzes up any wood edge. Perfect for creating decorative curved edges on furniture, cabinet doors, picture frames, moldings, and tabletops. A bearing guide is located on the end of the bit, ensuring precise cuts and optimal performance. The carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Recommended for natural woods, composite woods, and hard plastics. Carbide-tipped roman ogee bit with 5/32" radius, 1-1/8" large diameter, 9/16" cutting length, 1/4" shank, and 2" overall length for use with 1/4" collets.
| Width | 1.125 |
| Length | 2 |
Specifications
| Dimensions | |
|---|---|
| Width | 1-1/8 in. |
| Length | 2 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Length | 9/16 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
