Item Number
2292
Description

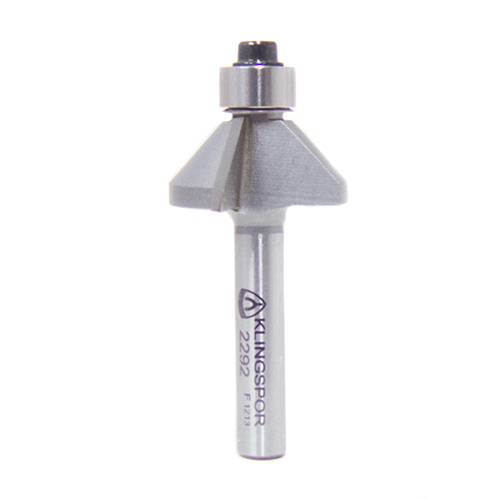

45 Degree Chamfer Bit 1"LD x 7/16"CL x 5/16"CH, 1/4" Shank
Product Details
45° Chamfer bits produce a 45° angle on the material and are used as a decorative edge, or miter joint, to produce uniformly crisp angles. A bearing guide is located on the end of the bit, ensuring precise cuts and optimal performance. The 1" large diameter easily fits through the base plate on small trim routers, making it ideal for removing sharp wedges or visual detail when using smaller routers. The carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Recommended for natural woods, composite woods, and hard plastics. Carbide-tipped 45° chamfer bit with 45° angle, 7/16" cutting length, 5/16" cutting height, 1/4" shank, and 1" large diameter for use with 1/4" collets.
| Width | 1 |
| Length | 1.875 |
Specifications
| Dimensions | |
|---|---|
| Width | 1 in. |
| Length | 1-7/8 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Length | 7/16 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
