2602

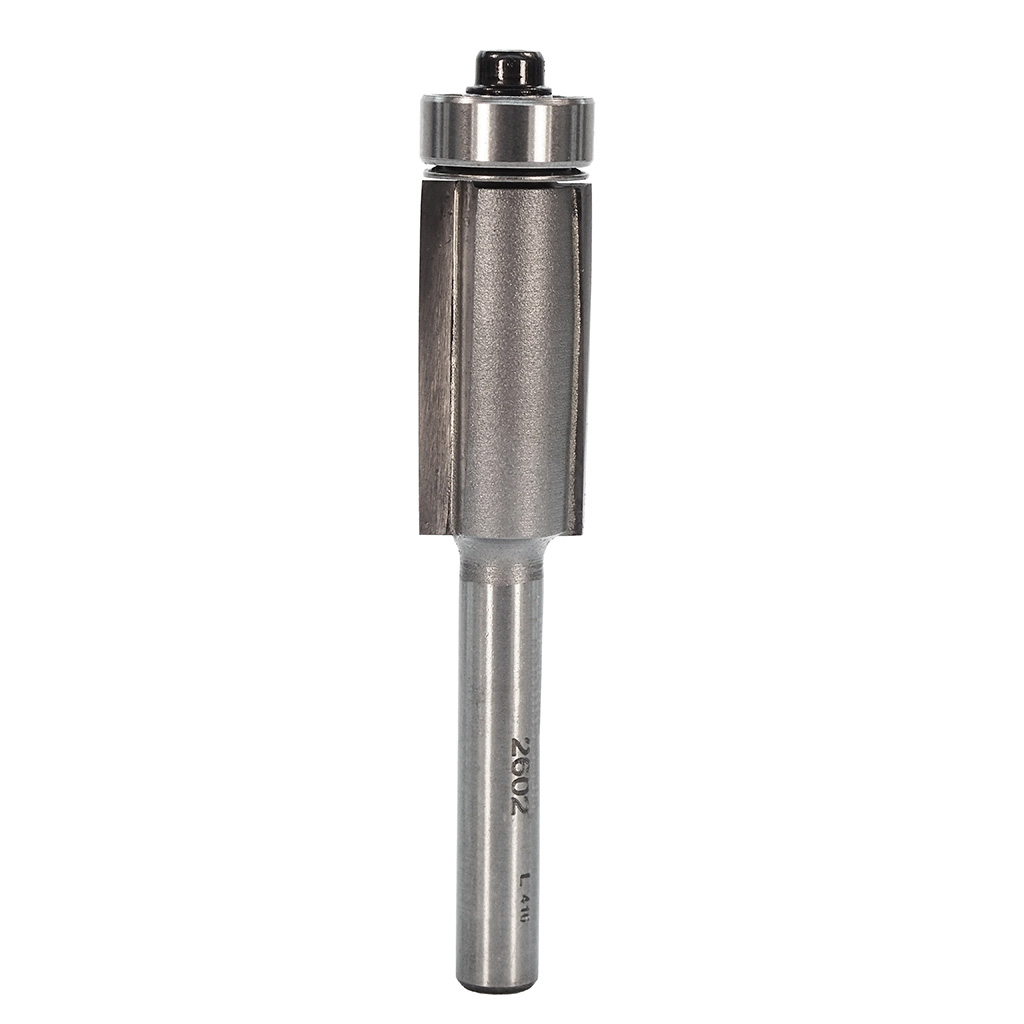

Flush Trim Bit 1/2"CD x 1"CL, 1/4" Shank
Item Number
2602
Description
Flush Trim Bit 1/2"CD x 1"CL, 1/4" Shank
Product Details
Flush Trim bits are designed to be used to trim flush laminate work or template work. The bearing follows the template and the cutter trims the workpiece. Bearing is on the bottom end (away from the shank) of the bit. Carbide tipped. Flush Trim downshear bits will leave the top of the work surface a little cleaner due to the slight angle cutting action (shear).
| Width | 0.5 |
| Length | 2.625 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-5/8 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 1/2 in. |
| Cut Length | 1 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 24,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
