Item Number
3214
Description

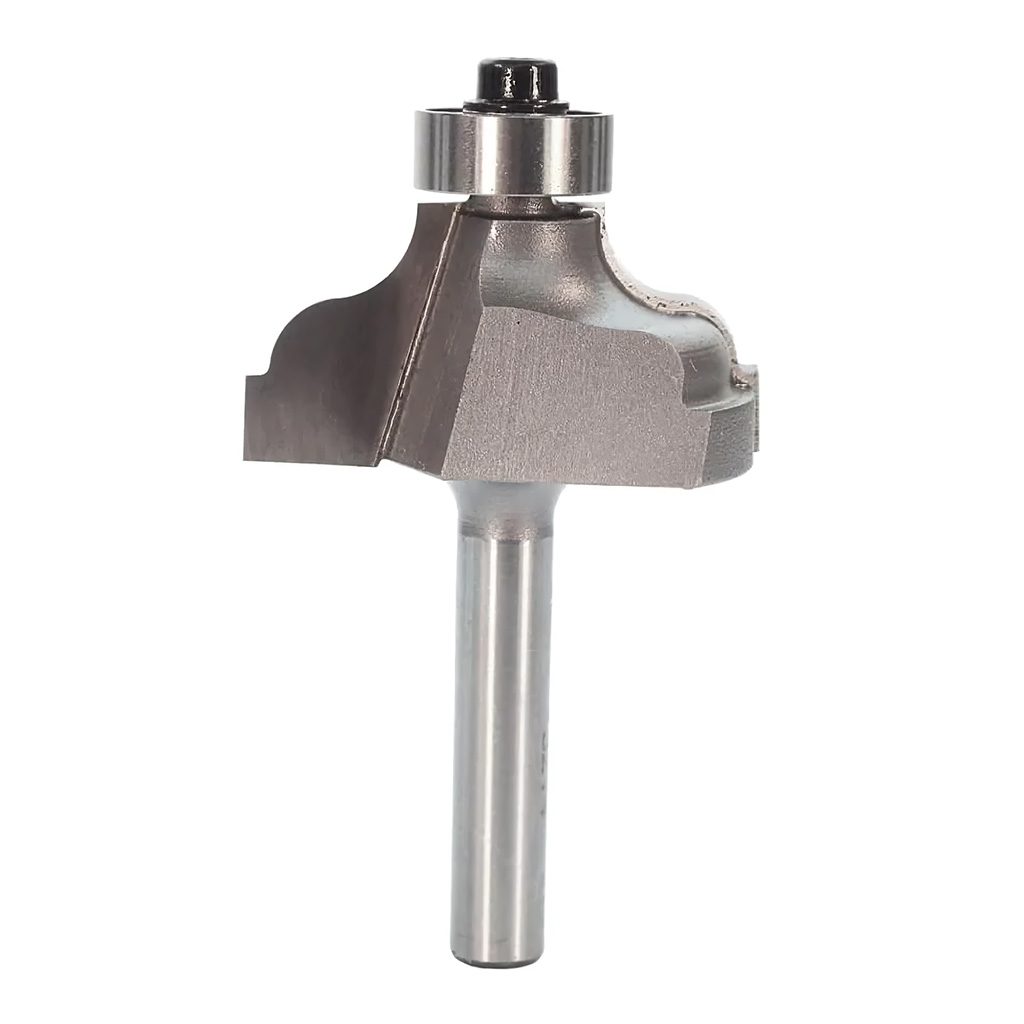

Ogee Fillet Bit 3/16" Radius, 1-3/8"LD x 5/8"CL, 1/4" Shank
Product Details
Ogee Fillet bits create an attractive small step (fillet) at the top then an ogee (convex then concave) at the bottom. Carbide tipped two-wing cutter.
| Width | 1.375 |
| Length | 2.125 |
Specifications
| Dimensions | |
|---|---|
| Width | 1-3/8 in. |
| Length | 2-1/8 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Length | 5/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
