Item Number
3222
Description

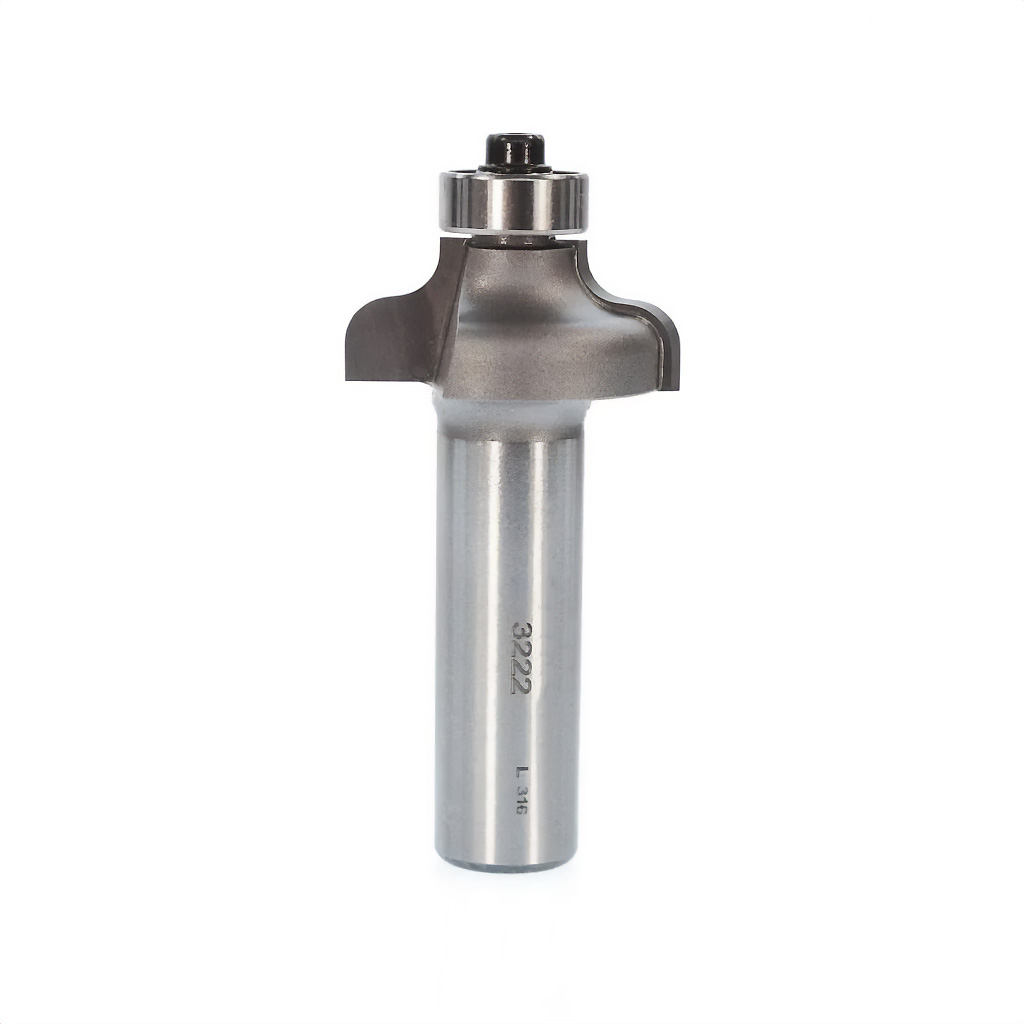

Ogee Bit 5/32"R, 1-1/8"LD x 1/2"CL, 1/2" Shank
Product Details
Ogee bits produce a simple cove at the top and a convex (bead) at the bottom of the workpiece. Carbide tipped two-wing cutter.
| Width | 1.125 |
| Length | 2.25 |
Specifications
| Dimensions | |
|---|---|
| Width | 1-1/8 in. |
| Length | 2-1/4 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Length | 1/2 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
