Item Number
KCB-SD-3L6SC
Description

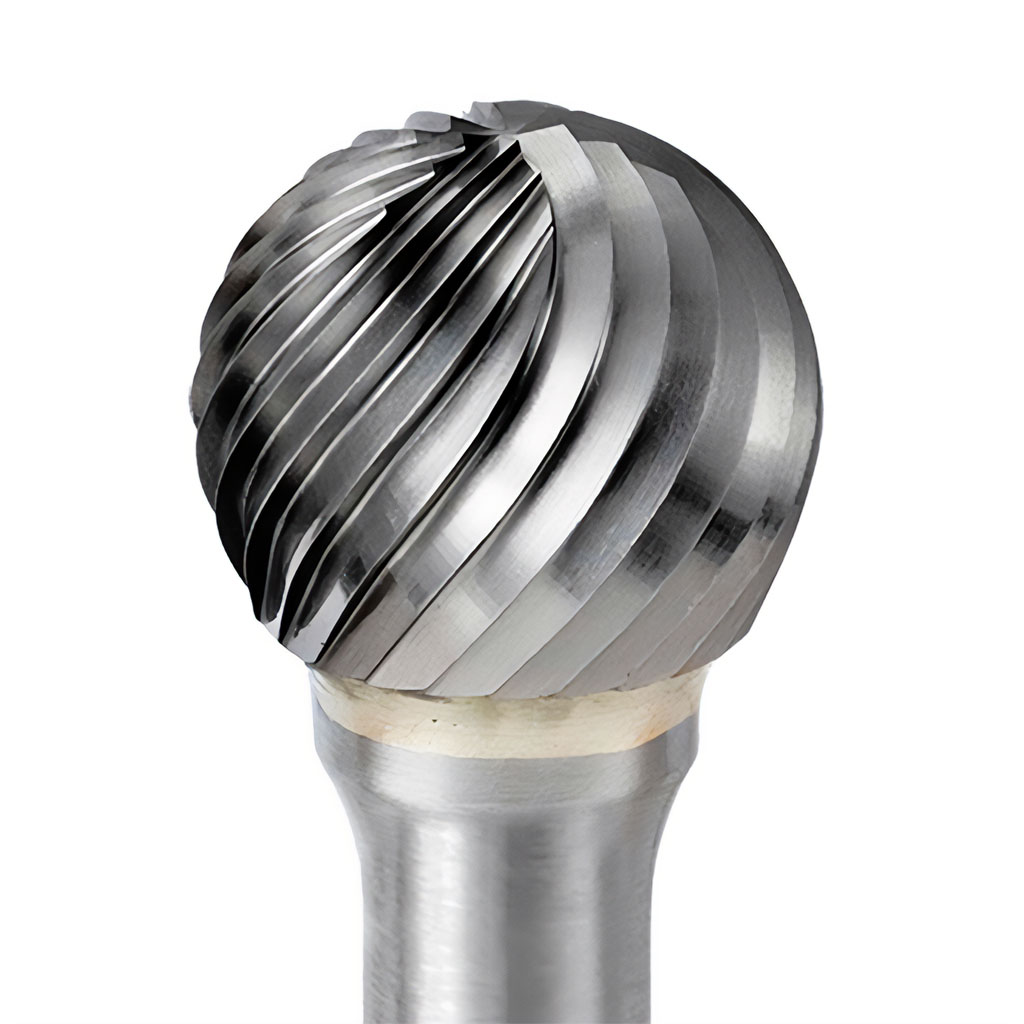

SD3L6 Ball Shape Carbide Burr 3/8"x 5/16"x 1/4" Shank x 6-1/3" OAL, Single Cut
Product Details
SD carbide burrs are specially designed to be used for grinding contours and deburring bore holes. Depending on the type of cut, the burr can be used on construction steel, non-ferrous metal, heat-resistant materials, and cast iron. The spherical ball-shaped head allows it to produce clean and accurate results that can be processed further without the need to rework. Choosing the right spindle speed is necessary for all rotating milling tools as it ensures the best possible results and long service life. For safety, do not exceed the maximum spindle speed. Please only operate within the recommended range of speed.
| Width | 0.375 |
| Length | 6.3333 |
Specifications
| Dimensions | |
|---|---|
| Length | 6-1/3 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Steel |
| Cut Details | |
|---|---|
| Cut Type | Single Cut |
| Cut Diameter | 3/8 in. |
| Cut Length | 5/16 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 37,500 |
| Other | |
|---|---|
| Shape Characteristic | SD - Ball Shape |
