Item Number
KCB-SM-5DC
Description

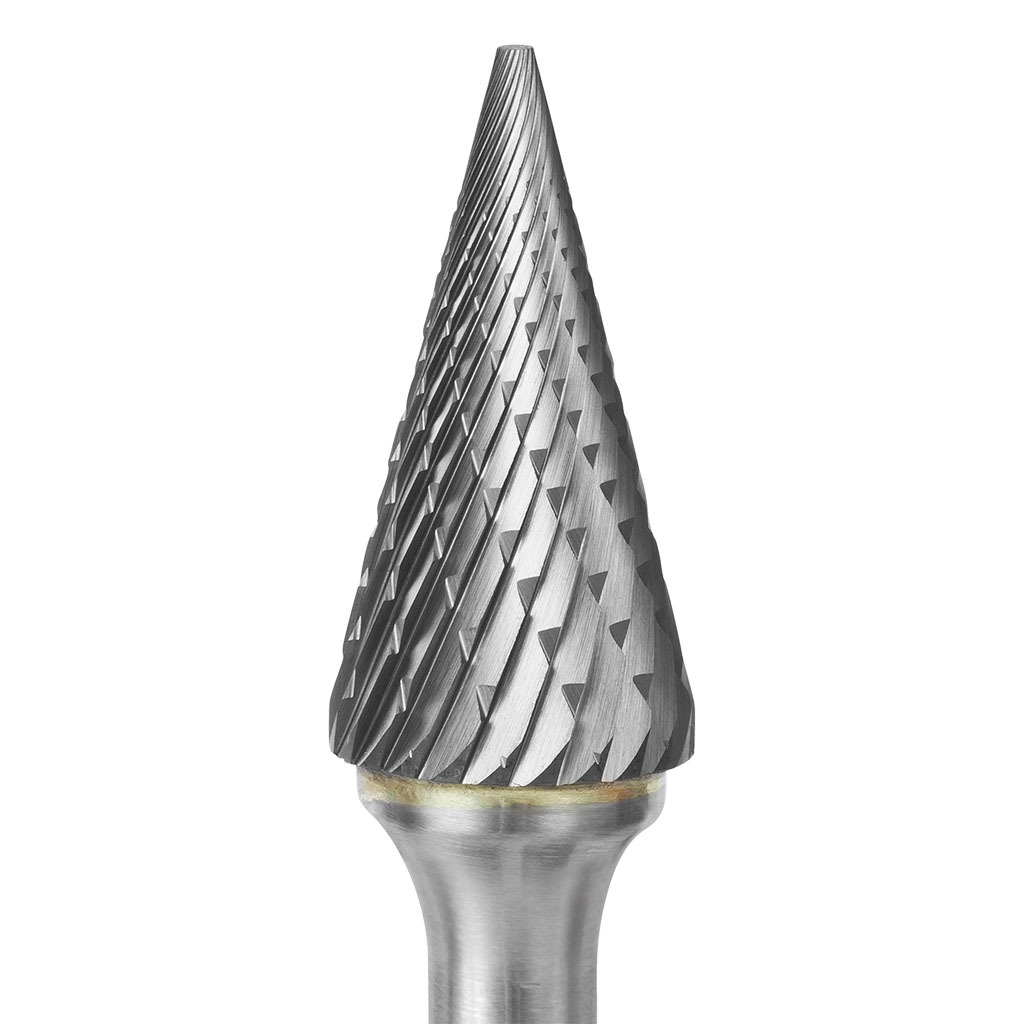

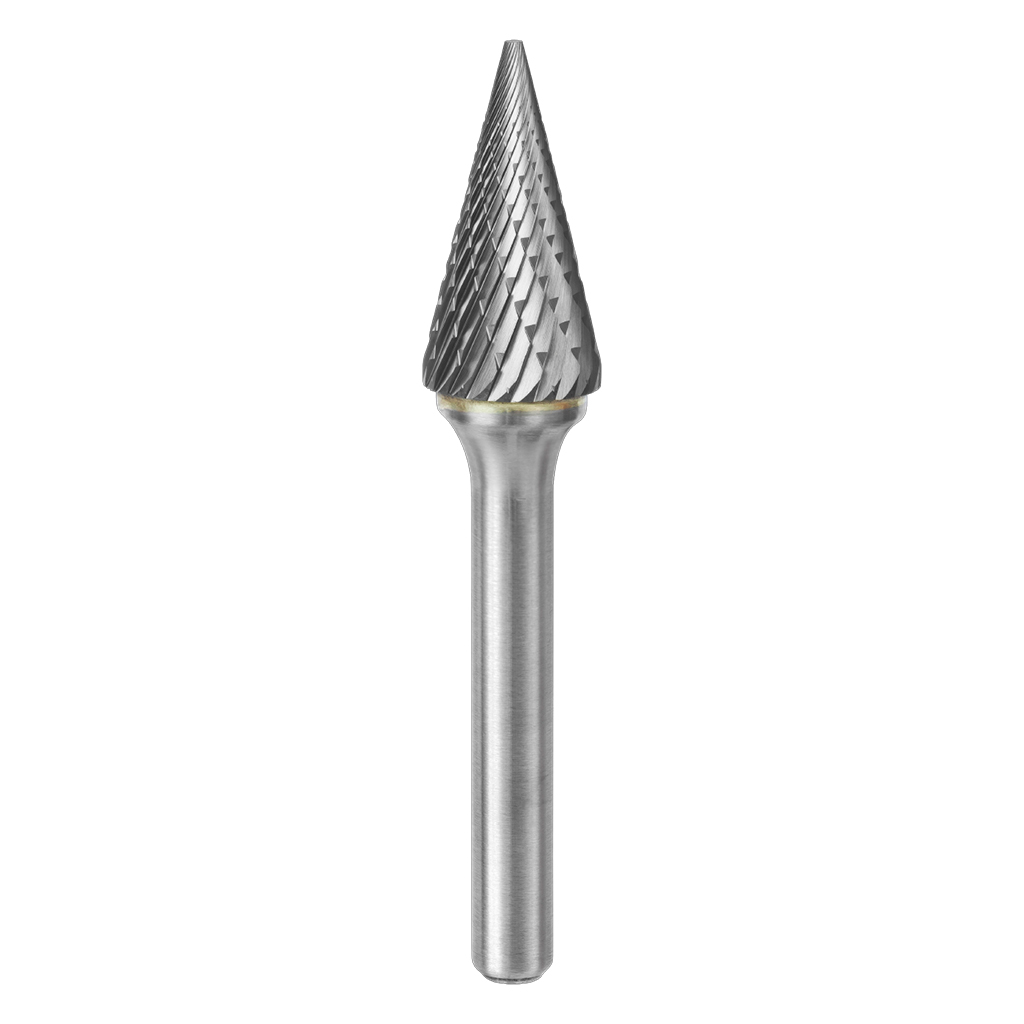

SM5 Pointed Cone Carbide Burr 1/2"x 7/8"x 1/4" Shank x 2-3/4" OAL, Double Cut R
Product Details
SM carbide burrs are designed with a pointed cone. It is the tool of choice for many real-world applications, particularly on metal, steel, and cast iron. Suitable applications for SM carbide burrs include deburring and model building. When used for the latter application, the burr truly shines during work on conical holes and grooves with a beveled edge. Professionals and hobbyists both benefit from the exceptional hardness and durability of this burr.
| Width | 0.5 |
| Length | 2.75 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-3/4 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Metal |
| Cut Details | |
|---|---|
| Cut Type | Double Cut |
| Cut Diameter | 1/2 in. |
| Cut Length | 7/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 28,000 |
| Other | |
|---|---|
| Shape Characteristic | SM - Cone Shape |
