Item Number
KCB-SN-4SC
Description

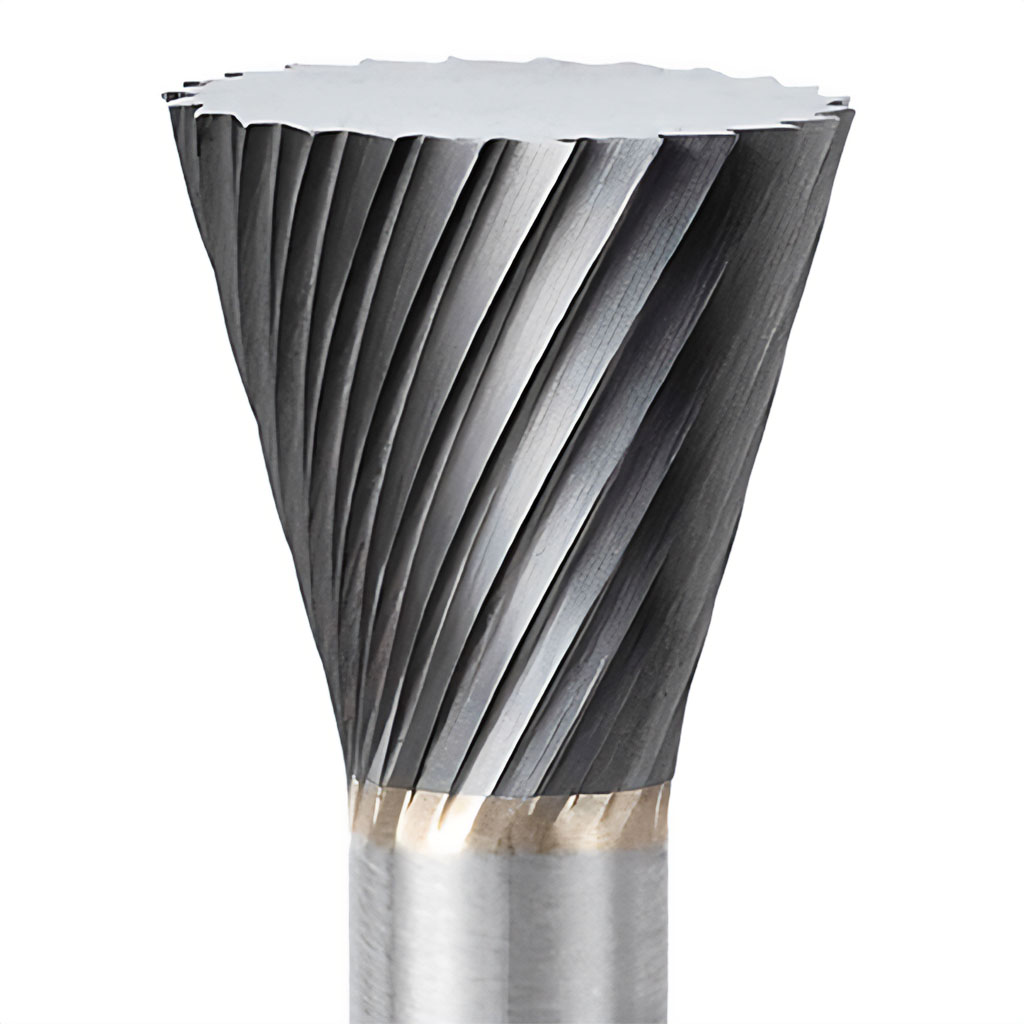

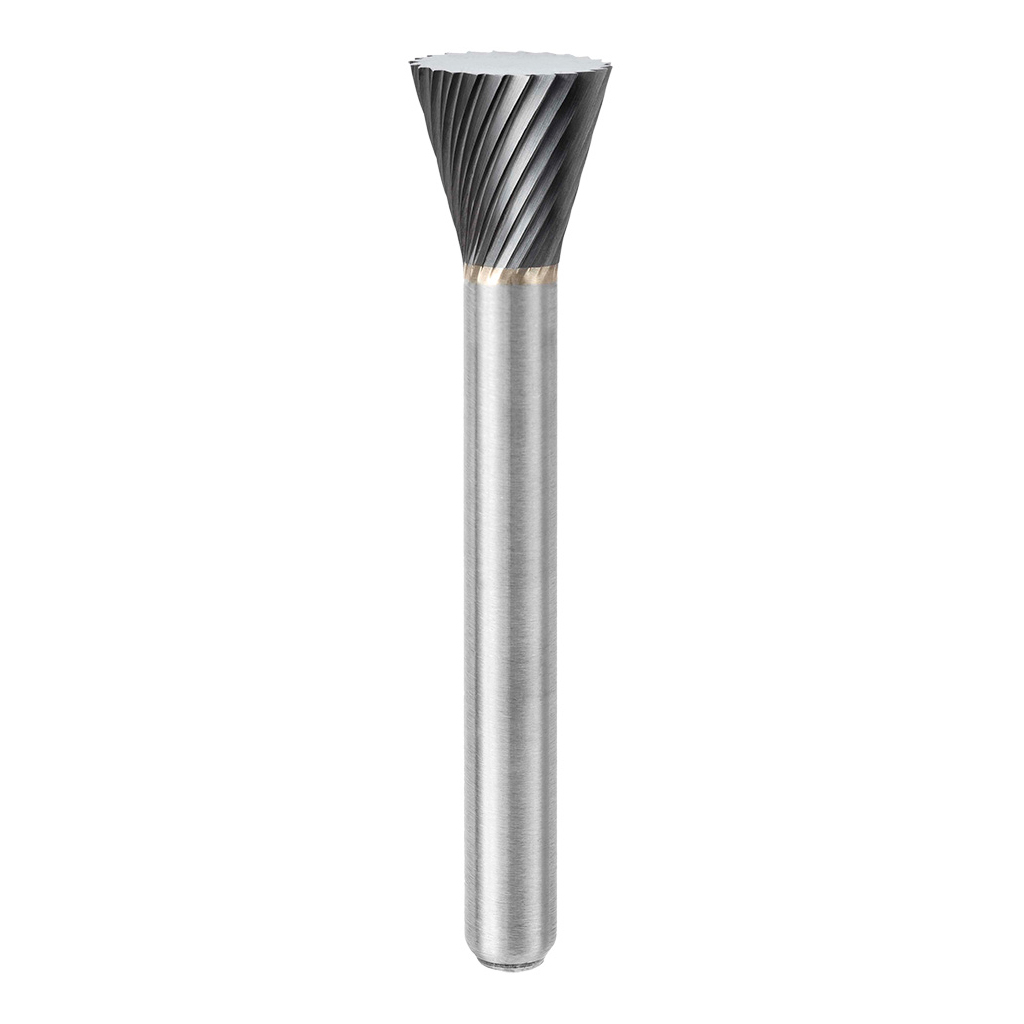

SN4 Inverted Cone Burr 1/2"x 1/2"x 1/4" Shank x 2-1/4" OAL, Single Cut
Product Details
The SN carbide burr has an angular burr that is designed without an end cut. This special shape makes it the ideal choice whenever applications call for work on beveled inner edges in hard-to-reach areas. SN carbide burrs are also useful for conical profile applications. Recommended for processing cast iron, heat-resistant materials, construction steel, and non-ferrous metals.
| Width | 0.5 |
| Length | 2.25 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-1/4 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Steel |
| Cut Details | |
|---|---|
| Cut Type | Single Cut |
| Cut Diameter | 1/2 in. |
| Cut Length | 1/2 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 28,000 |
| Other | |
|---|---|
| Shape Characteristic | SN - Cone Shape Inverted |
