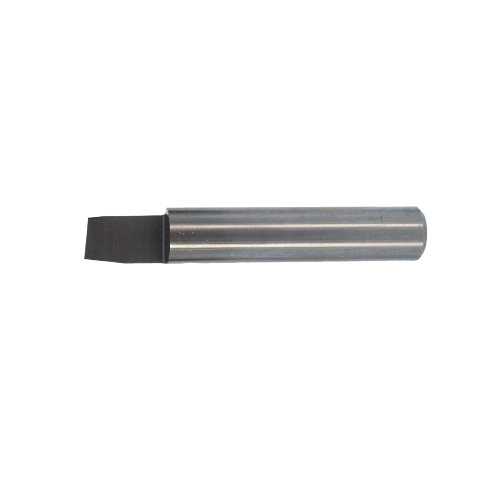

SC30
7 Degree Flush & Bevel Trim Bit without Pilot, Solid Carbide, 1/4"CD x 3/8"CL, 1/4" Shank, 1 Flute
Item Number
SC30
Description
7 Degree Flush & Bevel Trim Bit without Pilot, Solid Carbide, 1/4"CD x 3/8"CL, 1/4" Shank, 1 Flute
Product Details
Flush and 7 Degree Bevel Trim Router Bit without Pilot - designed with both a flush and 7 degree single flute cutting edge. These solid carbide bits are great for bevel trimming veneers or laminates. Solid Carbide flush / bevel trim bits work well, but do not have the bearing to follow the template. Instead, the solid end follows the template. This can create burning if a lubricant is not used. These are common in laminate countertop applications. The 7 degree bevel bits allow for minimal filing of the edge once routed. For use on hand routers and router tables.
| Length | 1.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 1-1/2 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 1/4 in. |
| Cut Length | 3/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 24,000 |
| Other | |
|---|---|
| Flute/Wings | 1 |
