UD5162M

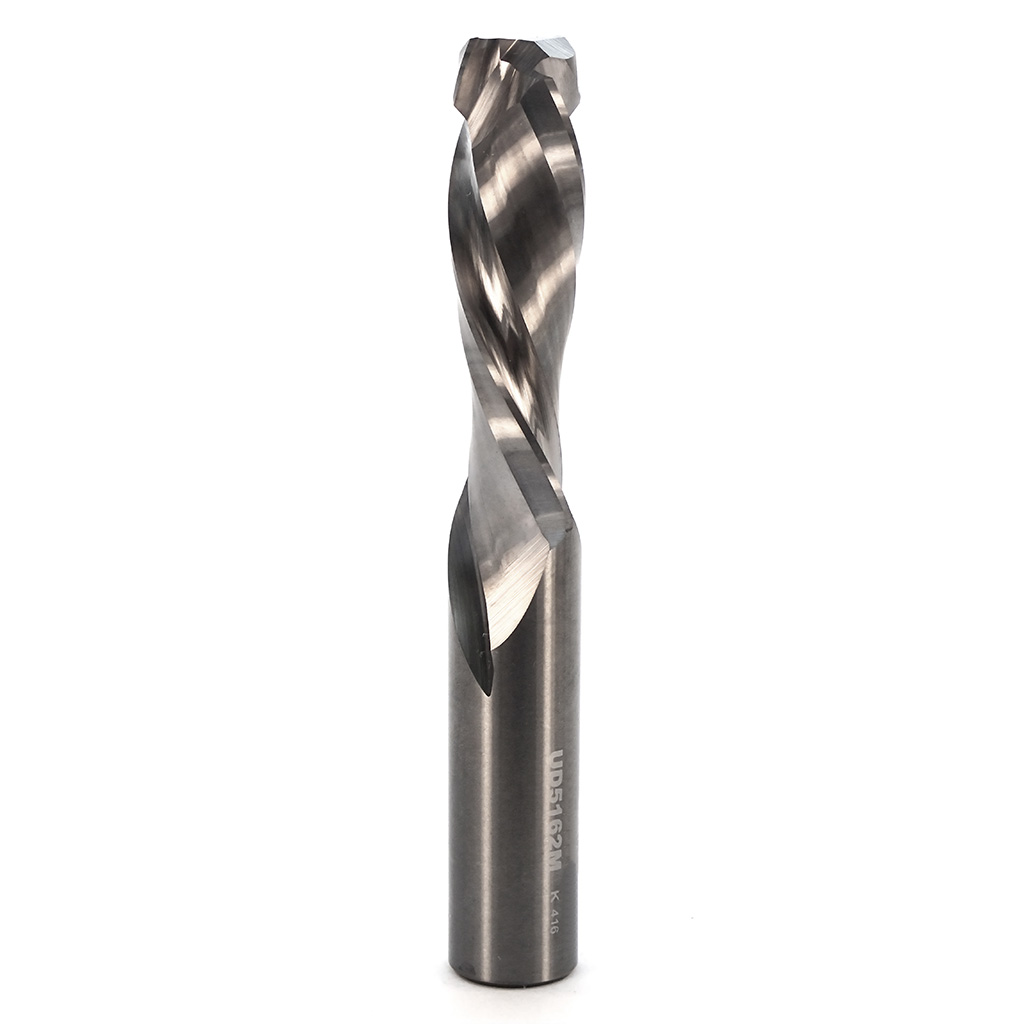

Up/Down Cut Spiral Bit, Solid Carbide, 1/2"CD x 1-5/8"CL, 1/2" Shank
Item Number
UD5162M
Description
Up/Down Cut Spiral Bit, Solid Carbide, 1/2"CD x 1-5/8"CL, 1/2" Shank
Product Details
Solid Carbide Spiral Bit with two up and down cut flutes, which create a 2+2 compression cut that prevents fraying and splintering. Applicable on natural woods, composites, hard plastics, and thin aluminum. The "M" in the item number denotes that the bit has a mortise cut, which provides a 1/4" upcut before the downcut begins. This allows the cutter to create a shallower groove/dado cut for denser or easily chipped material.
| Width | 0.5 |
| Length | 3.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 3-1/2 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 1/2 in. |
| Cut Length | 1-5/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 24,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
