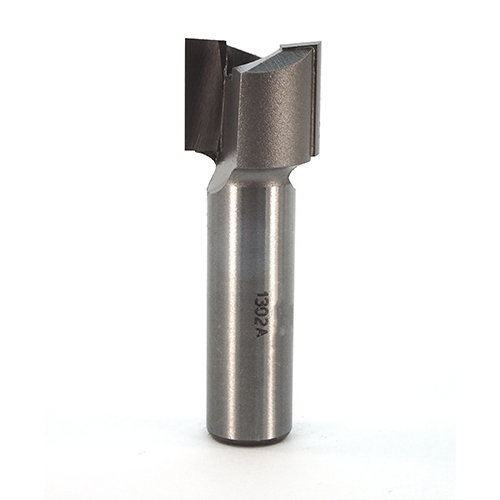

1302A
Mortise Bit 3/4"CD x 5/8"CL, 1/2" Shank
Item Number
1302A
Description
Mortise Bit 3/4"CD x 5/8"CL, 1/2" Shank
Product Details
Mortise bits are for cutting shallow recesses on door hinges, locksets, and other joinery, delivering a precise rectangular recess for various woodworking applications. The mortise and tenon joints are most often used to join materials at right angles and require a tight fit. A carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Designed for hand-held routers, router tables, and CNC machines in a wide variety of applications. Two flute, carbide-tipped, mortising straight bit with 3/4" cutting diameter, 5/8" cutting length, 1/2" shank, and 2-1/4" overall length for use with 1/2" collets.
| Width | 0.75 |
| Length | 2.25 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-1/4 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 3/4 in. |
| Cut Length | 5/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
