Item Number
1480
Description

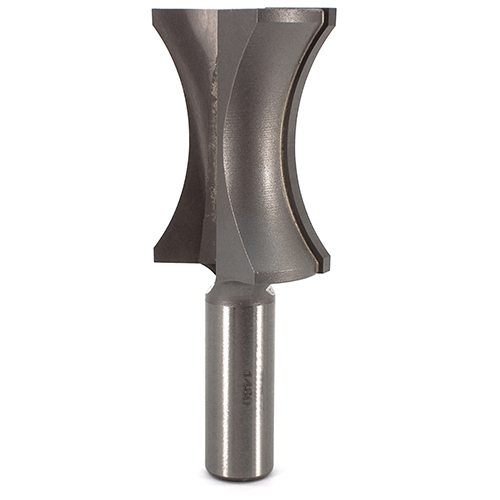

Oval Edge Bit 1-1/2"BO x 1/4"BD x 1-3/4"CL, 1/2" Shank
Product Details
Also known as a Half Bull Nose bit, this router bit does not create a full radius. Instead, it creates an oval edge with smooth, precise curves for a professional finish. The router bit can be set up to produce an oval cut top to bottom, or a small shoulder at the top and bottom of the work. The carbide tip offers an excellent balance of quality and cost, making it ideal for a wide range of applications. Perfect for use on natural woods, composite woods, and hard plastics, providing clean and precise cuts across a variety of surfaces. Designed for router tables and CNC machines in a wide variety of applications. Carbide-tipped, oval edge bit with 1-1/2" bead opening, 1/4" bead depth, 1-3/4" cutting length, 1/2" shank, and 1-1/4" large diameter for use with 1/2" collets.
| Width | 1.25 |
Specifications
| Dimensions | |
|---|---|
| Width | 1-1/4 in. |
| Length | 3-1/4 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Length | 1-3/4 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
