1701

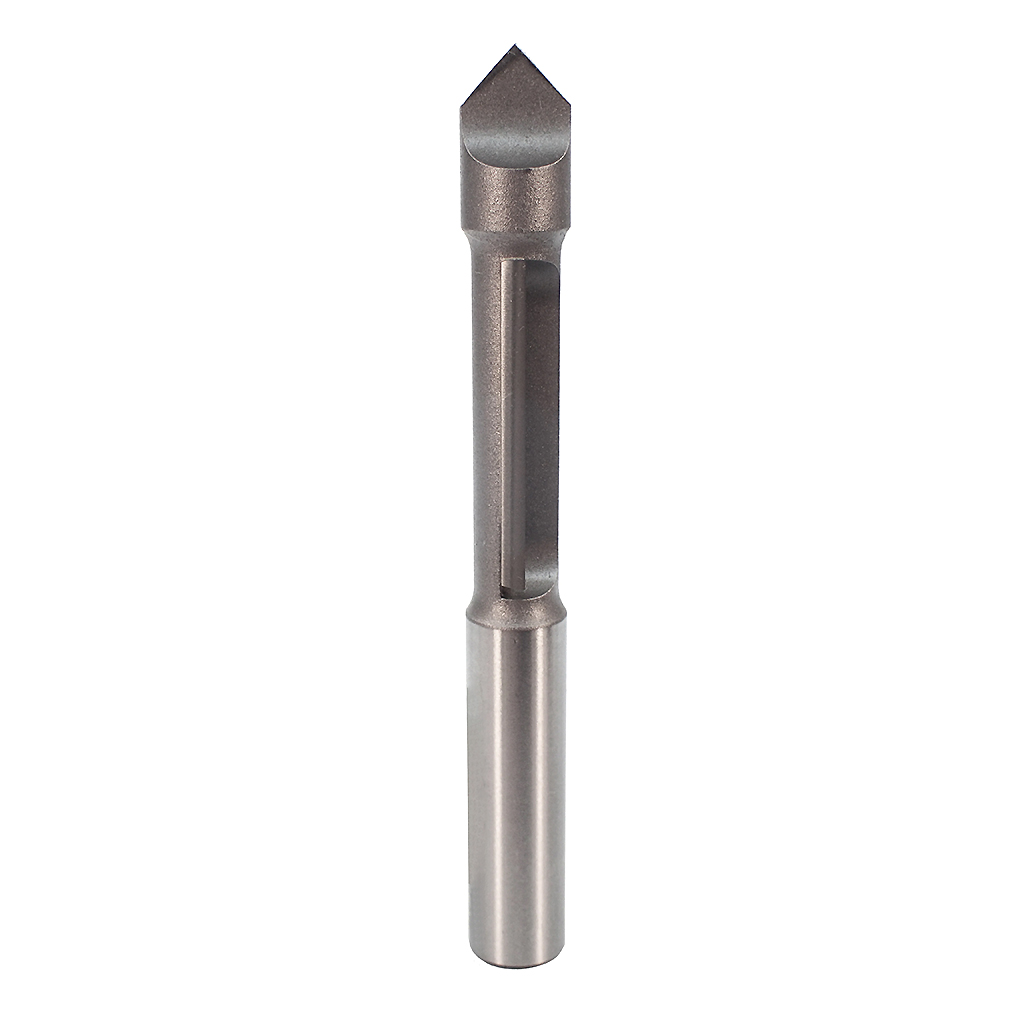

Pilot Plunge Point Panel Bit 3/8"CD x 1"CL, 3/8" Shank
Item Number
1701
Description
Pilot Plunge Point Panel Bit 3/8"CD x 1"CL, 3/8" Shank
Product Details
Panel Pilot Plunge bit has a drill-through point that allows self-starting, and the pilot acts as a guide for template work. Ensures a clean, straight cut that matches the shape being cut out. The 'V' shaped tip allows rapid plunging through panels or siding. Single flute bits provide excellent chip clearance for faster feed rates and higher material removal, improving efficiency and performance. This bit is used heavily in the RV & mobile home industry, industrial markets, and construction for window and door cutouts. For use in a factory setting or on the jobsite. Handheld router only. Carbide-tipped, single flute, pilot plunge point panel bit with 3/8" cutting diameter, 1-1/8" cutting length, 3/8" shank, and 3-3/8" overall length for use with 3/8" collets.
| Width | 0.375 |
| Length | 3.375 |
Specifications
| Dimensions | |
|---|---|
| Length | 3-3/8 in. |
| Shank Diameter | 3/8 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 3/8 in. |
| Cut Length | 1 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 24,000 |
| Other | |
|---|---|
| Flute/Wings | 1 |
