Item Number
2302
Description

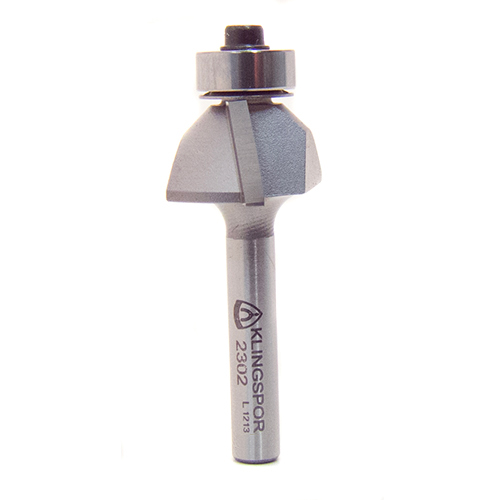

45 Degree Chamfer Bit 5/8CL 7/16CH 1/4" Shank
Product Details
45° Chamfer bits produce a 45° angle on the material and are used as a decorative edge, or miter joint, to produce uniformly crisp angles. Carbide tipped. Two-wing cutter.
| Width | 1.375 |
| Length | 2 |
Specifications
| Dimensions | |
|---|---|
| Width | 1-3/8 in. |
| Length | 2 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Length | 5/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
