Item Number
3360
Description

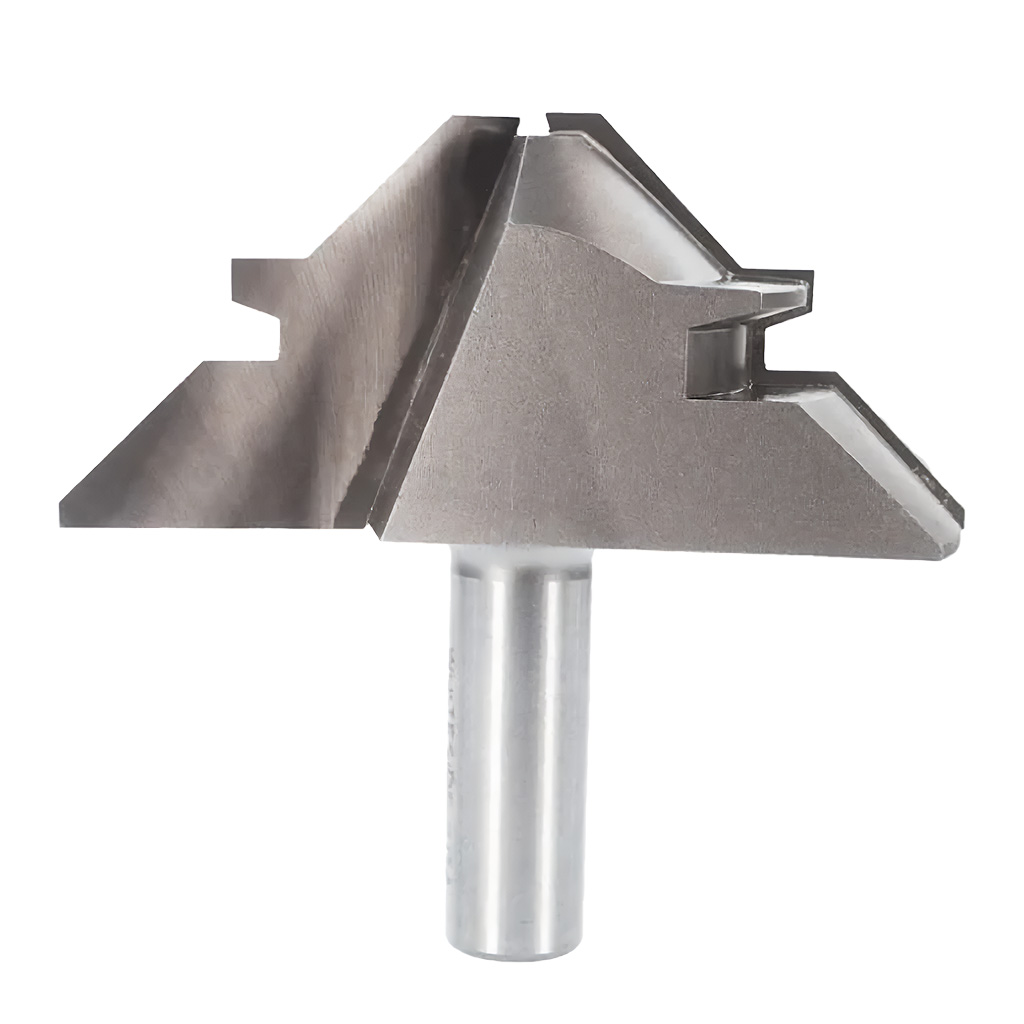

45 Degree Lock Miter Bit 3-1/8"LD x 1/2 to 1-1/4"CL, 1/2" Shank
Product Details
45° Lock Miter bits deliver double the glue surface of a traditional 45° miter. It creates both the miter and a joint lock at the same time, which prevents movement when clamping pressure is applied. Carbide tipped, two-wing cutter.
| Width | 3.125 |
| Length | 2.875 |
Specifications
| Dimensions | |
|---|---|
| Width | 3-1/8 in. |
| Length | 2-7/8 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Length | 1-1/4 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 12,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
