Item Number
5620
Description
Traditional-Style Stile Profile Bit 1-1/4"LD, 1/2" Shank
Product Details

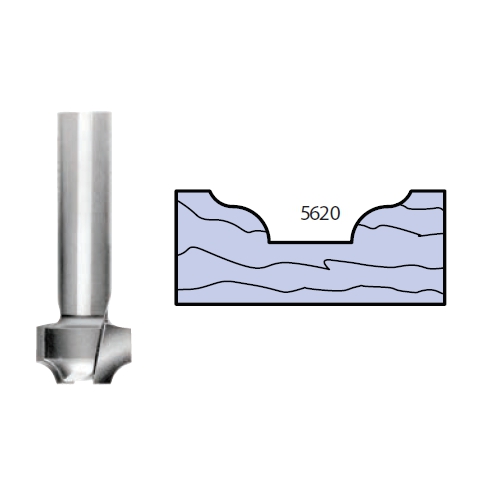

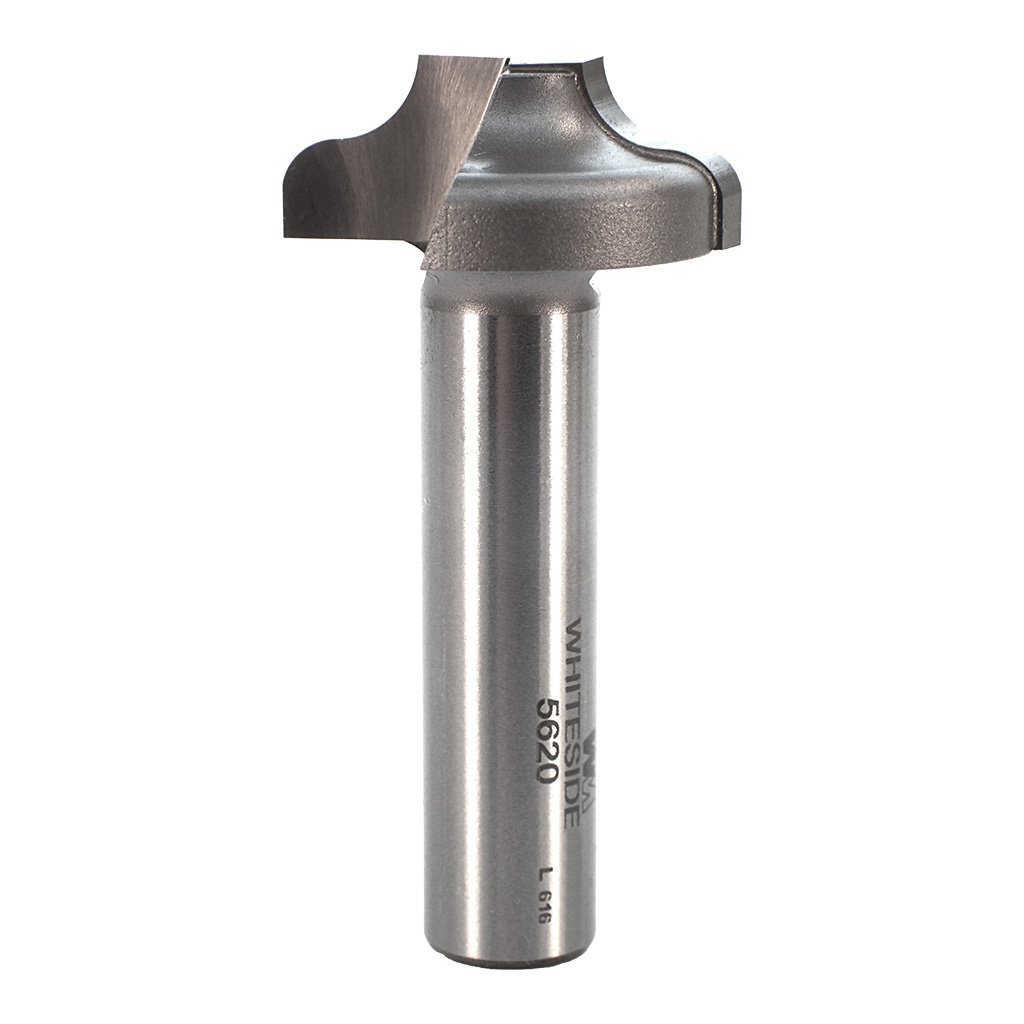

This bit is designed to give the illusion of raised panel door construction in MDF and solid panel doors. When used individually these bits produce a nice, simple raised panel effect in one pass. Or use one of the "Panel" bits in conjunction with one of the "Stile" bits to create a more authentic raised panel reveal. The plunging design offers precise control over the starting point of the profile, allowing for accurate and consistent cuts. Perfect for interior doors, providing a smooth, paintable surface. Ideal for achieving a polished look in any room. Designed for production routing on CNC machines. A bearing and lock collar can also be added to the shank for following patterns manually. Carbide-tipped traditional style profile bit with 1-1/4" large diameter, 1/2" shank, and 2-1/2" overall length for use with 1/2" collets.
| Width | 1.25 |
| Length | 2.5 |
Specifications
| Dimensions | |
|---|---|
| Width | 1-1/4 in. |
| Length | 2-1/2 in. |
| Shank Diameter | 1/2 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
| Other | |
|---|---|
| Flute/Wings | 2 |
