Item Number
KCB-SD-42L3DC
Description
SC42L3 Ball Shape Carbide Burr 1/8"x 1/8"x 1/8" Shank x 3" OAL, Double Cut
Product Details

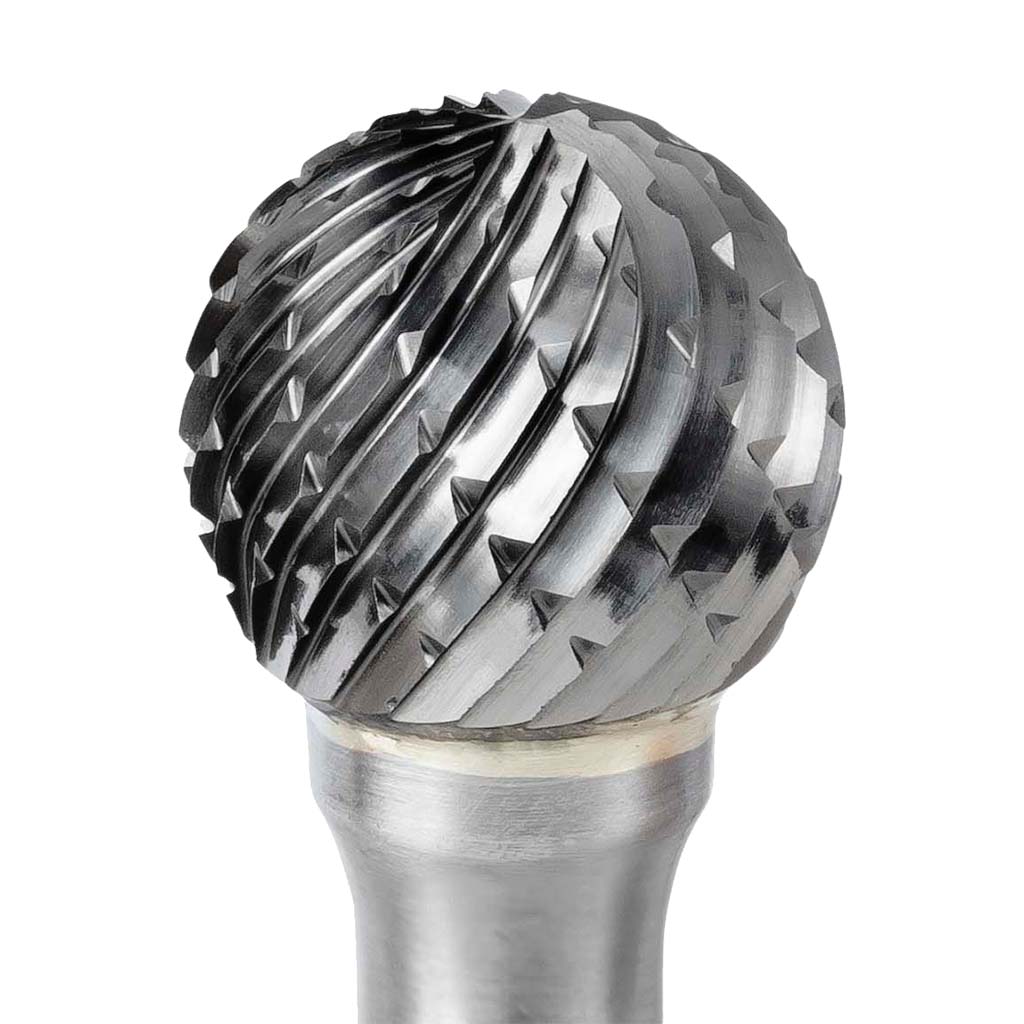

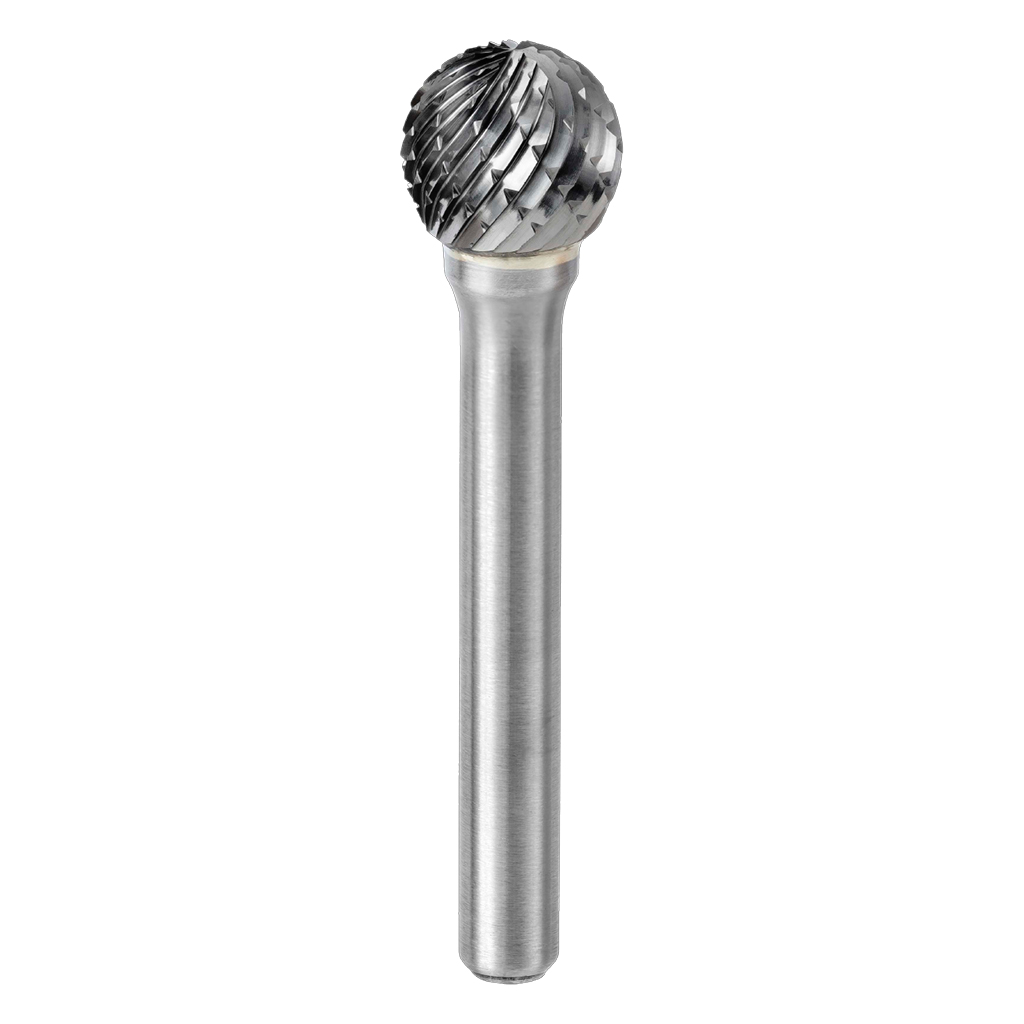

SD carbide burrs are specially designed to be used for grinding contours and deburring bore holes. Depending on the type of cut, the burr can be used on construction steel, non-ferrous metal, heat-resistant materials, and cast iron. The spherical ball-shaped head allows it to produce clean and accurate results that can be processed further without the need to rework. Choosing the right spindle speed is necessary for all rotating milling tools as it ensures the best possible results and long service life. For safety, do not exceed the maximum spindle speed. Please only operate within the recommended range of speed.
| Width | 0.125 |
| Length | 3 |
Specifications
| Dimensions | |
|---|---|
| Length | 3 in. |
| Shank Diameter | 1/8 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Metal |
| Cut Details | |
|---|---|
| Cut Type | Double Cut |
| Cut Diameter | 1/8 in. |
| Cut Length | 1/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 75,000 |
| Other | |
|---|---|
| Shape Characteristic | SD - Ball Shape |
