Item Number
KCB-SF-15DC
Description

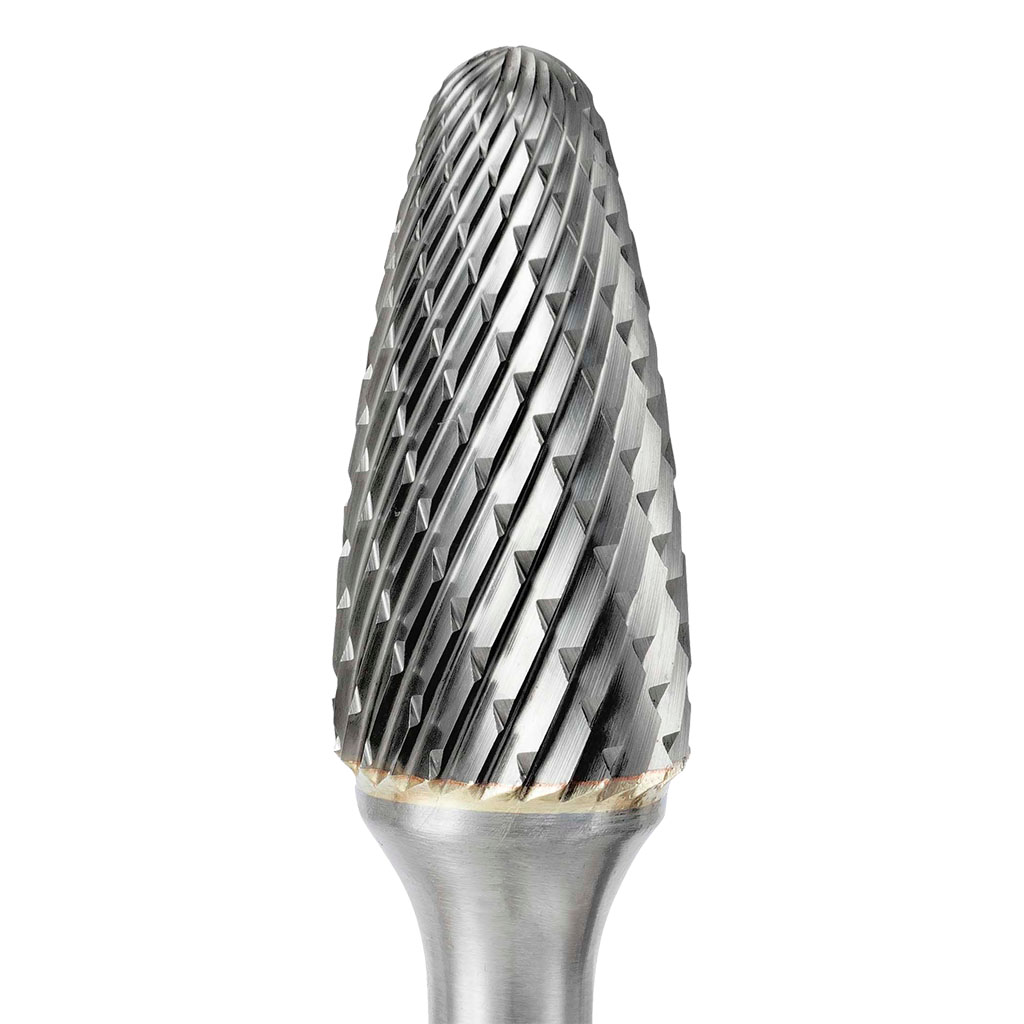

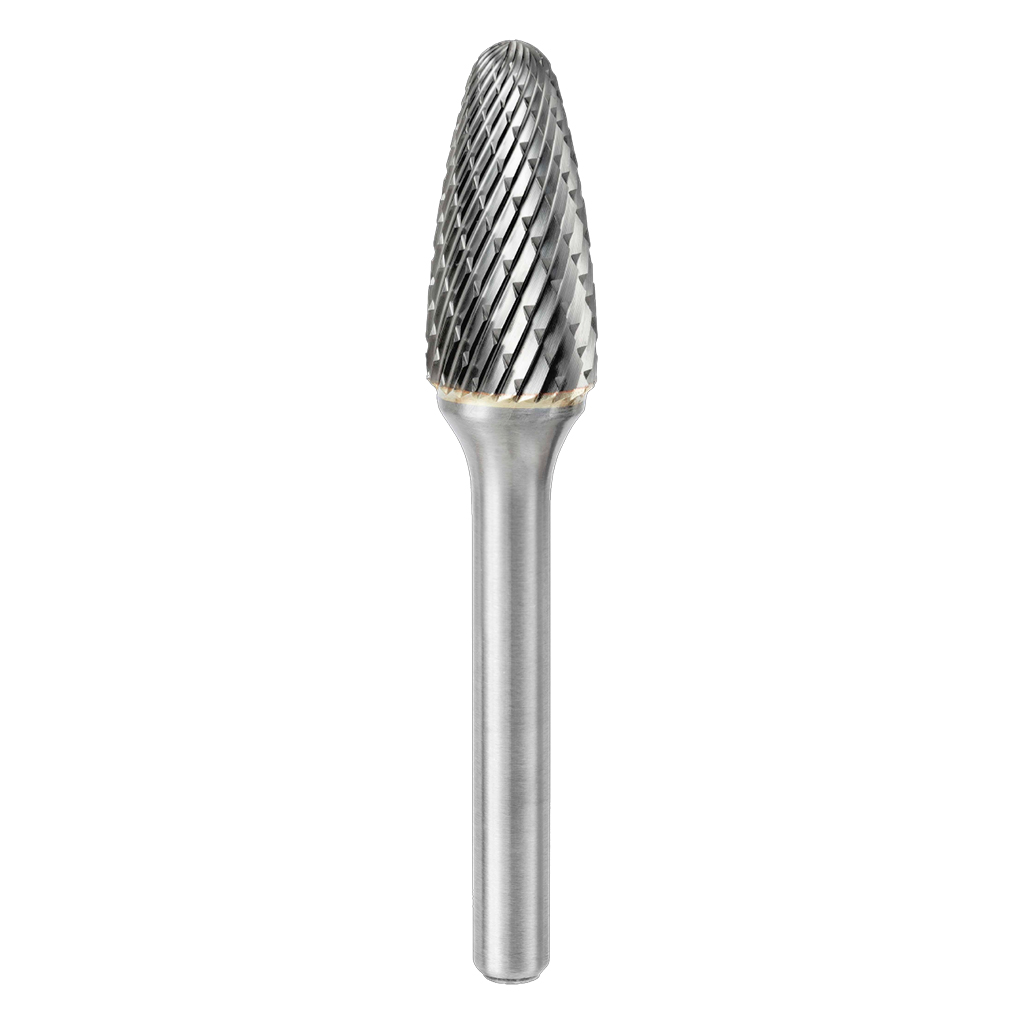

SF15 Tree Shape Carbide Burr 3/4"x 1-1/2"x 1/4" Shank x 3-1/4" OAL, Double Cut
Product Details
The semi-circular design of SF carbide burrs make them ideal for processing moulded parts. SF carbide burrs are used for applications like the milling of construction steel, non-ferrous metal, heat-resistant materials, and cast iron.
| Width | 0.75 |
| Length | 3.25 |
Specifications
| Dimensions | |
|---|---|
| Length | 3-1/4 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Metal |
| Cut Details | |
|---|---|
| Cut Type | Double Cut |
| Cut Diameter | 3/4 in. |
| Cut Length | 1-1/2 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 19,000 |
| Other | |
|---|---|
| Shape Characteristic | SF - Tree Shape |
