Item Number
KCB-SF-5DC
Description

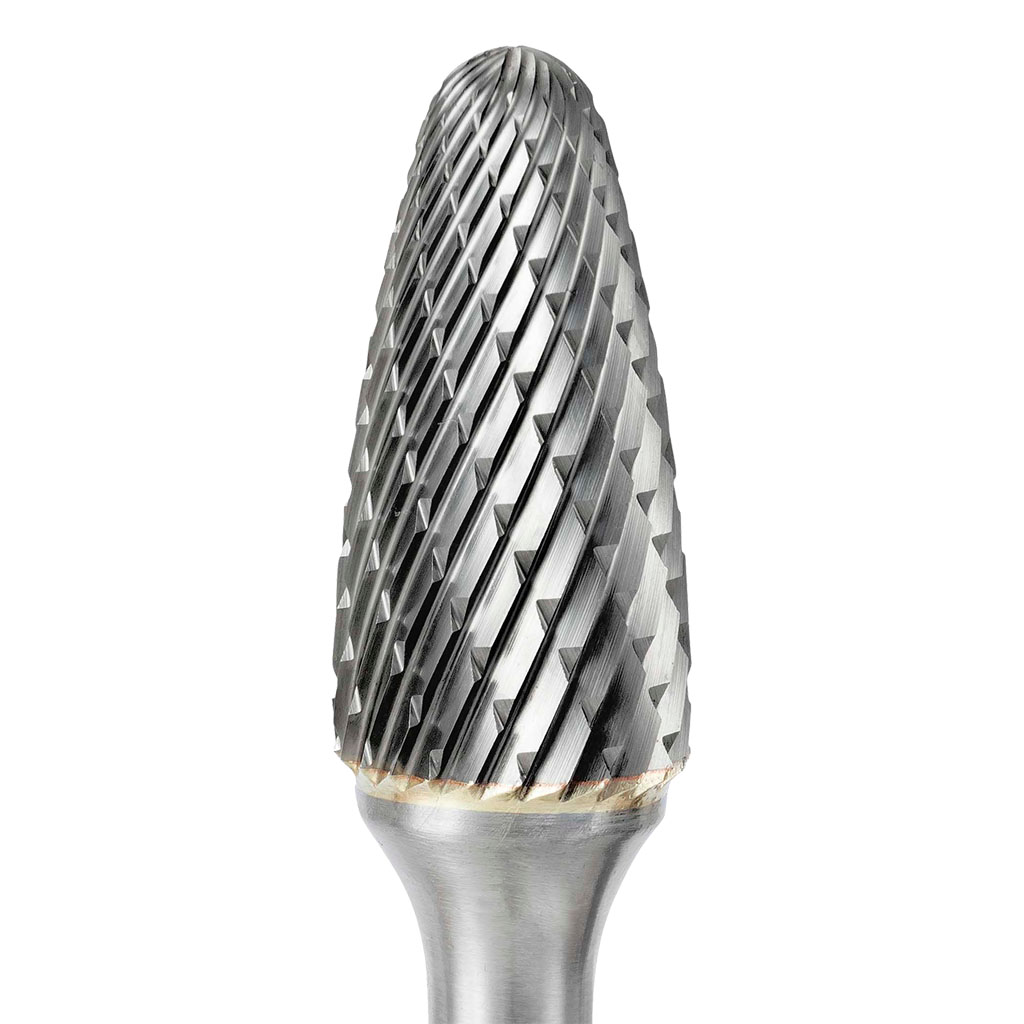

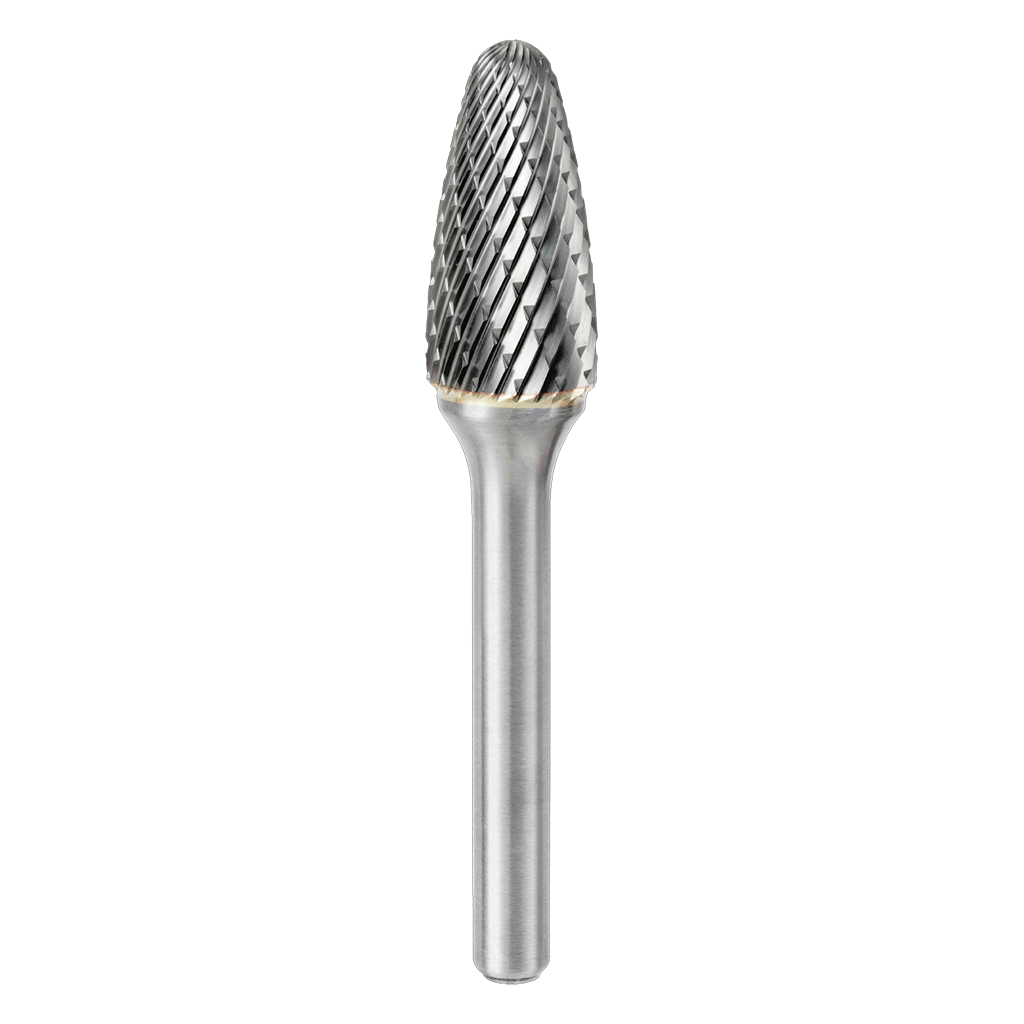

SF5 Tree Shape Carbide Burr 1/2"x 1"x 1/4" Shank x 2-3/4" OAL, Double Cut R
Product Details
The semi-circular design of SF carbide burrs make them ideal for processing moulded parts. SF carbide burrs are used for applications like the milling of construction steel, non-ferrous metal, heat-resistant materials, and cast iron.
| Width | 0.5 |
| Length | 2.75 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-3/4 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Metal |
| Cut Details | |
|---|---|
| Cut Type | Double Cut |
| Cut Diameter | 1/2 in. |
| Cut Length | 1 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 28,000 |
| Other | |
|---|---|
| Shape Characteristic | SF - Tree Shape |
