Item Number
KCB-SG-61DC
Description

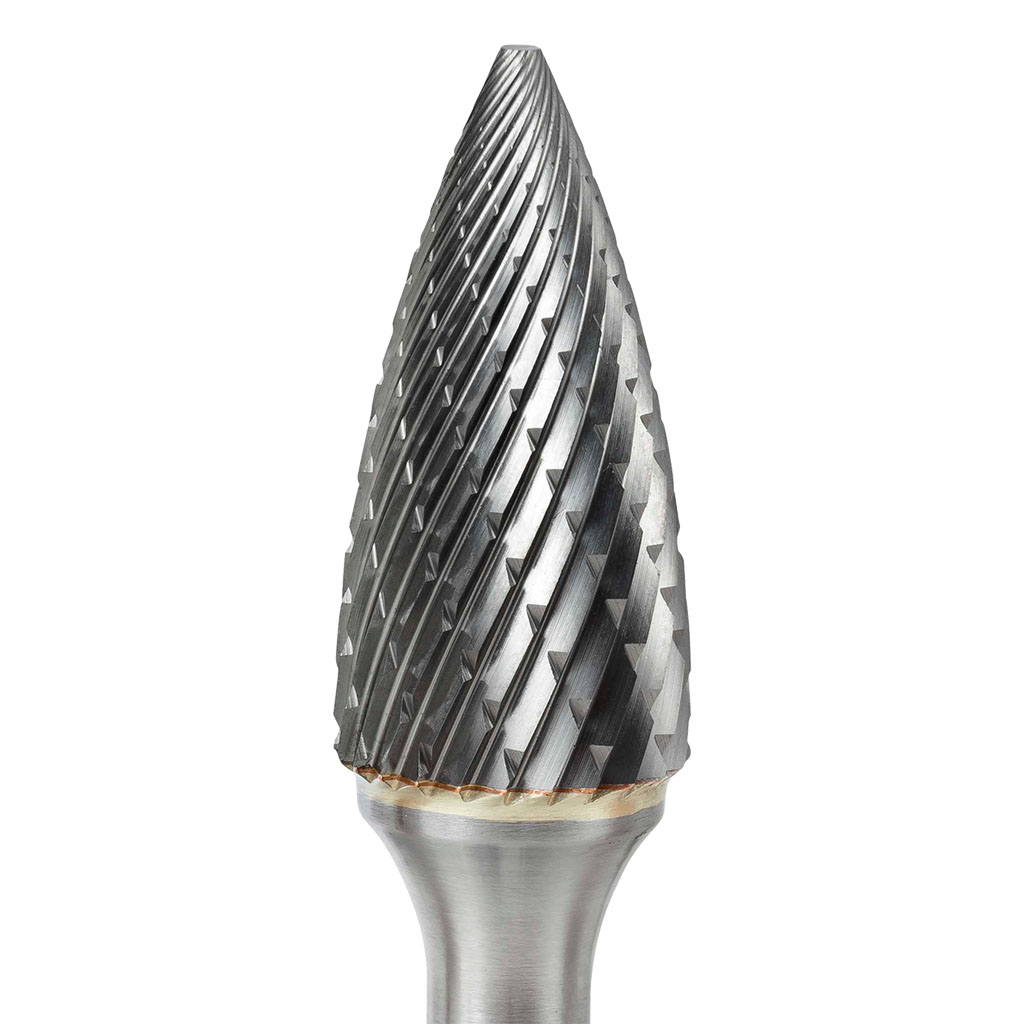

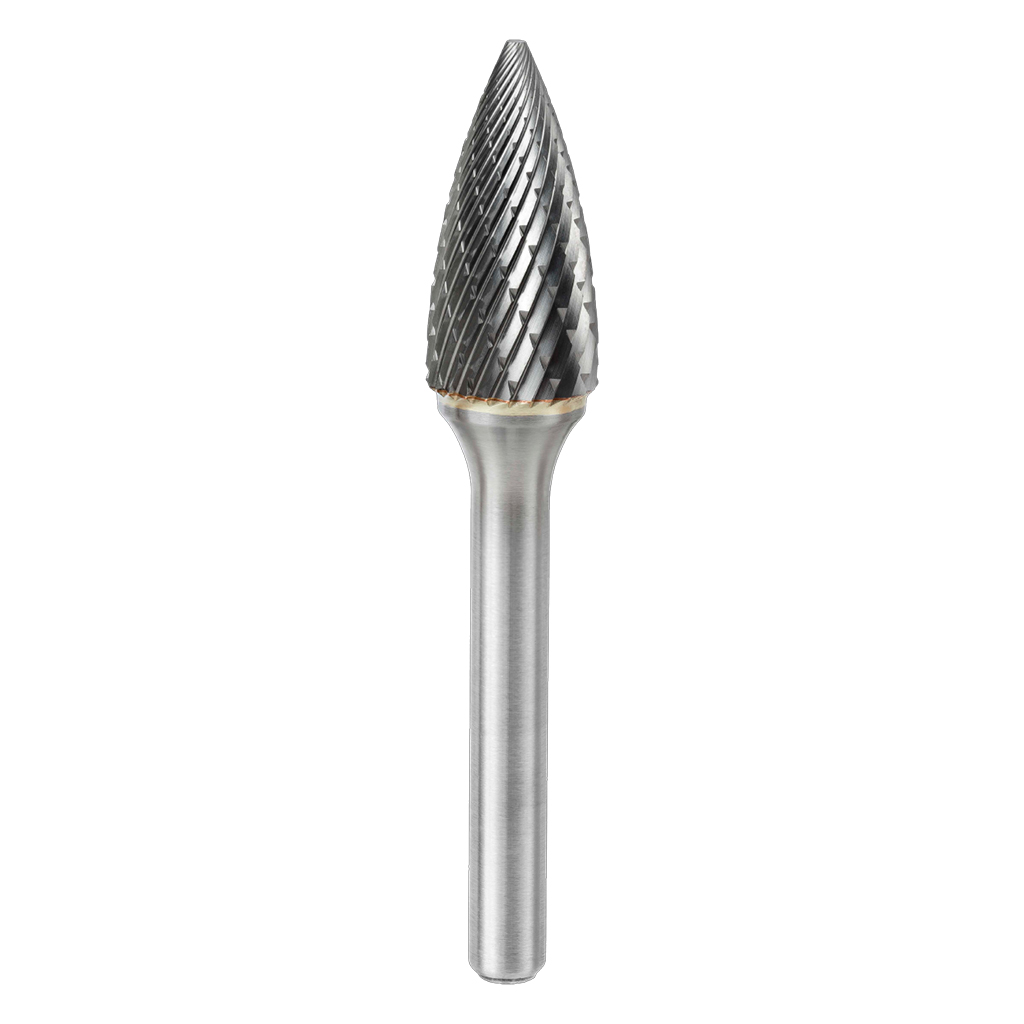

SG61 Tree Shape Pointed End Carbide Burr 3/32"x 1/4"x 3/32" Shank x 1.25" OAL, Double Cut
Product Details
SG carbide burrs have a pointed arch-shaped design and flattened tip. They are ideal for processing hard materials. Also known as tree shape pointed end burrs, they demonstrate excellent performance when used for beveling edges, smoothing weld seams, chamfering, deburring bore holes, fine grinding surfaces, and shaping workpieces. The SG carbide burr is also useful when fitting parts during assembly. Recommended in applications that involve non-ferrous metal, cast iron, construction steel, and heat-resistant materials.
| Width | 0.0938 |
| Length | 1.25 |
Specifications
| Dimensions | |
|---|---|
| Length | 1-1/4 in. |
| Shank Diameter | 3/32 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Metal |
| Cut Details | |
|---|---|
| Cut Type | Double Cut |
| Cut Diameter | 3/32 in. |
| Cut Length | 1/4 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 100,000 |
| Other | |
|---|---|
| Shape Characteristic | SG - Tree Shape Pointed End |
