Item Number
KCB-SH-41L3SC
Description

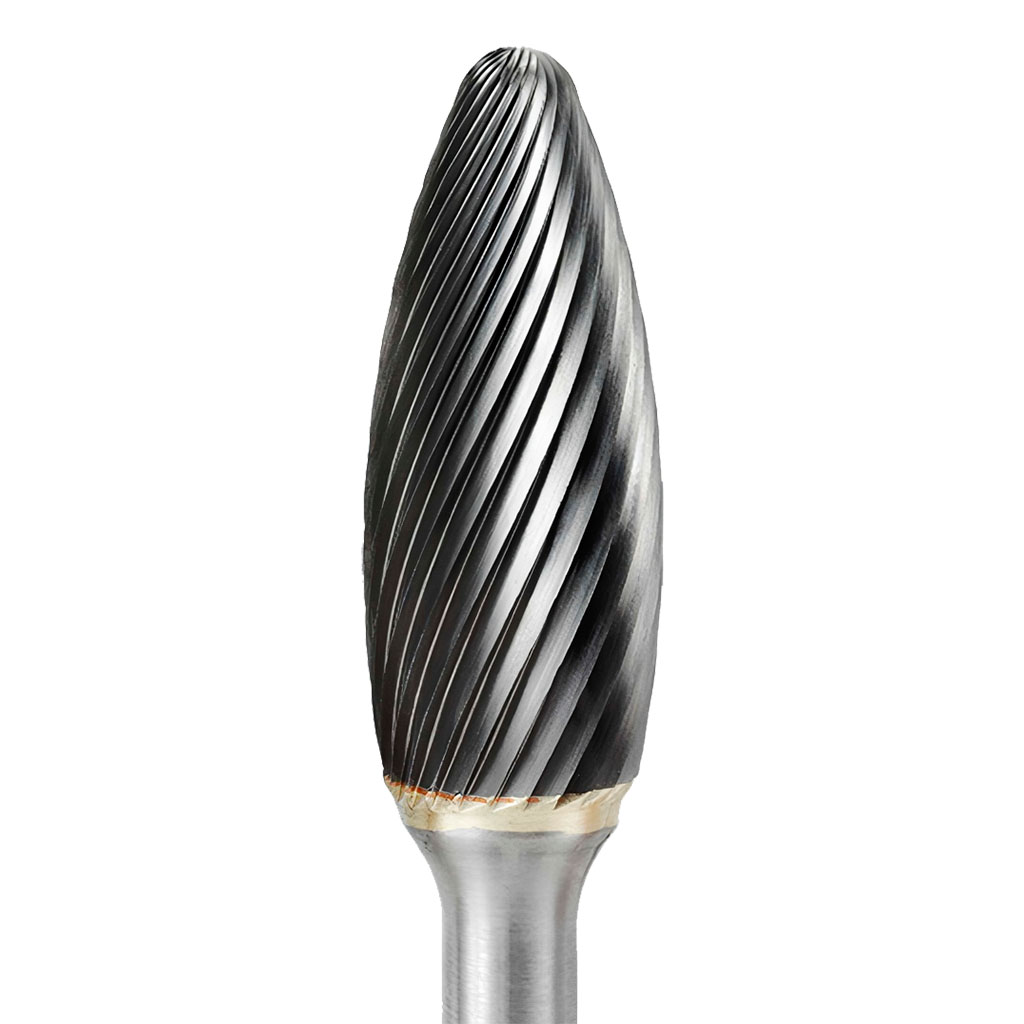

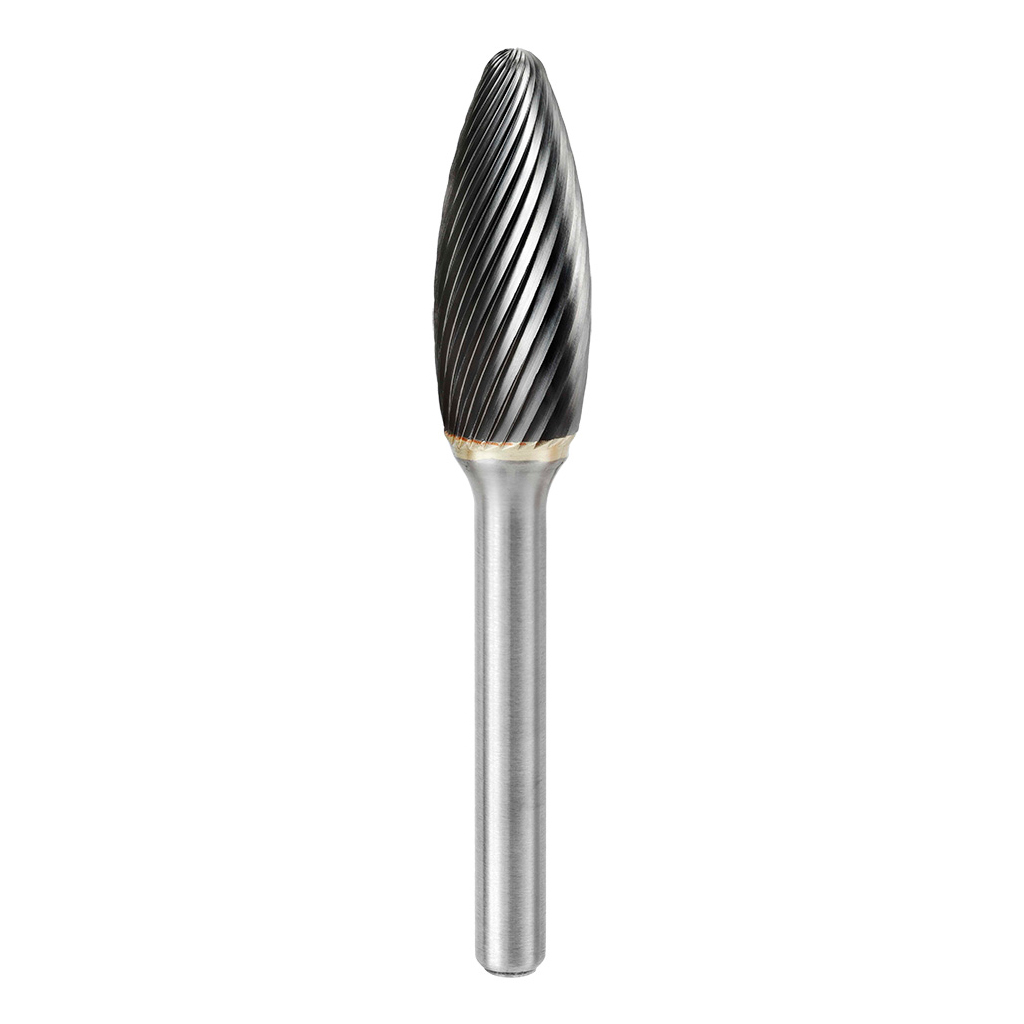

SH41L3 Flame Shape Carbide Burr 1/8"x 1/4"x 1/8" Shank x 3" OAL, Single Cut
Product Details
The shape of an SH carbide burr resembles a flame. This carbide burr is the perfect solution for processing moulded parts. Other possible applications for this milling tool are the grinding of contours, deburring and the removal of casting flash. The SH carbide burr also performs exceedingly well during applications like fine grinding surfaces, chamfering and leveling weld seams. It is equally useful when used for fitting jobs during assembly.
| Width | 0.125 |
| Length | 3 |
Specifications
| Dimensions | |
|---|---|
| Length | 3 in. |
| Shank Diameter | 1/8 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Steel |
| Cut Details | |
|---|---|
| Cut Type | Single Cut |
| Cut Diameter | 1/8 in. |
| Cut Length | 1/4 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 100,000 |
| Other | |
|---|---|
| Shape Characteristic | SH - Flame Shape |
