Item Number
KCB-SJ-9SC
Description

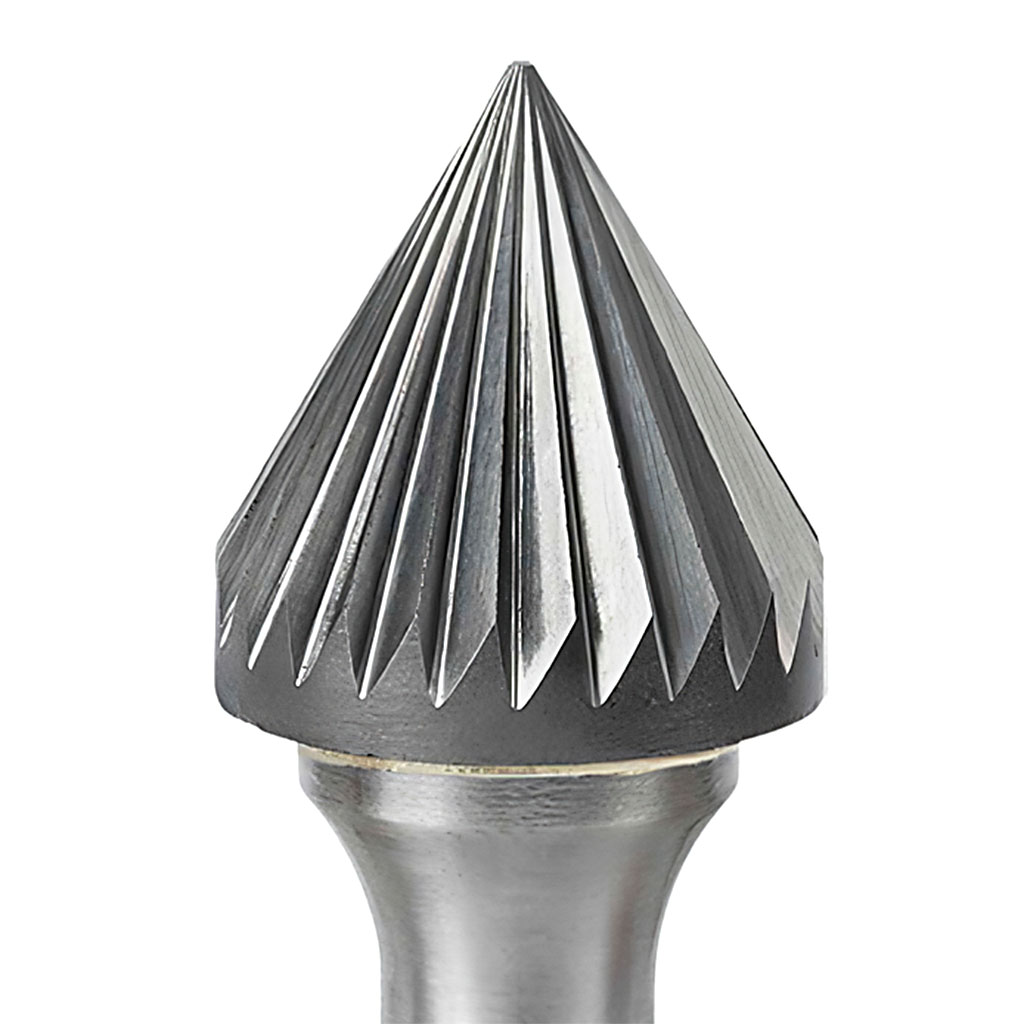

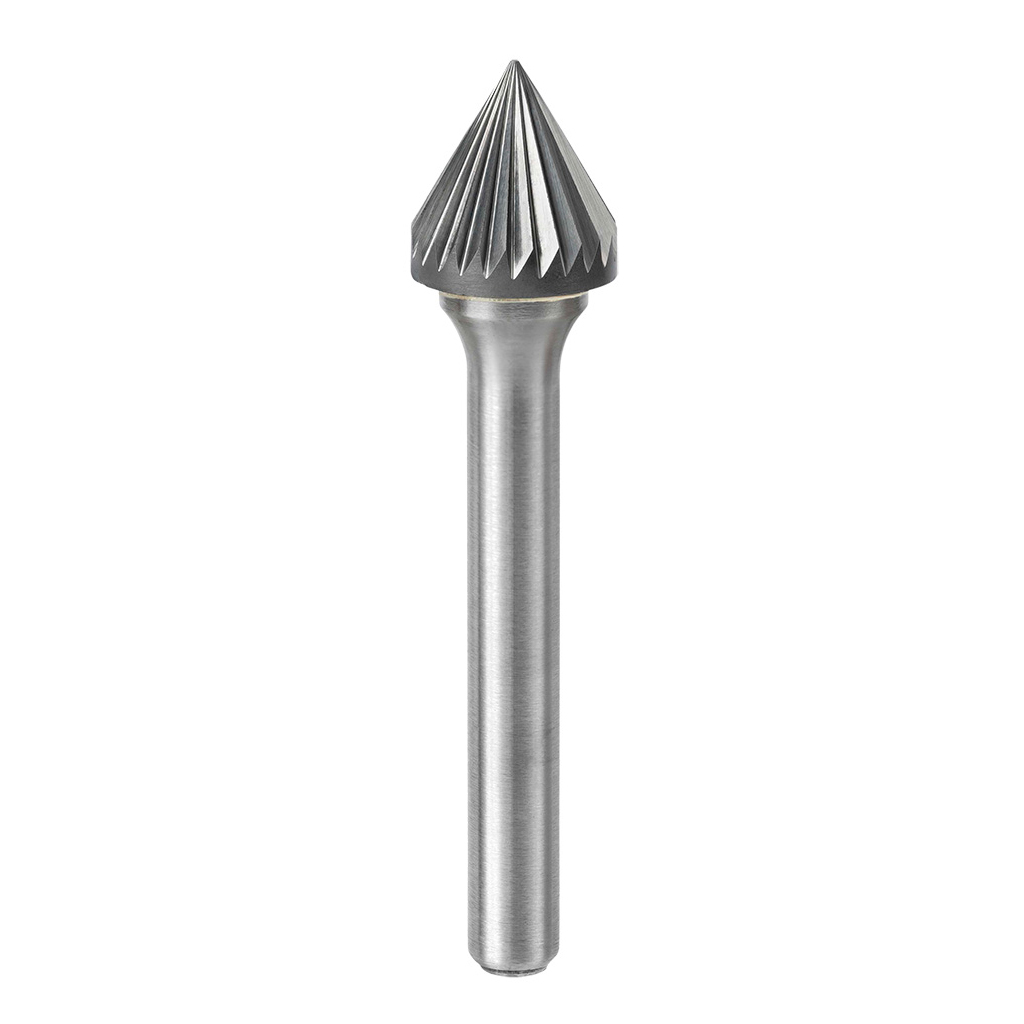

SJ9 Cone Shape Carbide Burr 1"x 15/16"x 1/4" Shank x 2-7/9" OAL, Single Cut, 60 Degrees
Product Details
SJ carbide burrs have a short, spiraling, conical shape at a 60° angle. This carbide burr is optimized to be versatile and long-lasting, appealing to both professionals and hobbyists for its high-quality use in a wide range of applications. It can be used for milling construction steel, non-ferrous metals, cast iron, plastic, and heat-resistant material. The conical milling head shapes edges with ease and precision. Use the SJ carbide burr for bevelling the slanted surfaces of grooves, for chamfering, deburring, and producing countersink bores.
| Width | 1 |
| Length | 2.7777 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-7/9 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Steel |
| Cut Details | |
|---|---|
| Cut Type | Single Cut |
| Cut Diameter | 1 in. |
| Cut Length | 15/16 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 14,000 |
| Other | |
|---|---|
| Shape Characteristic | SJ - Cone Shape 60 Degree Angle |
