RU1800RN

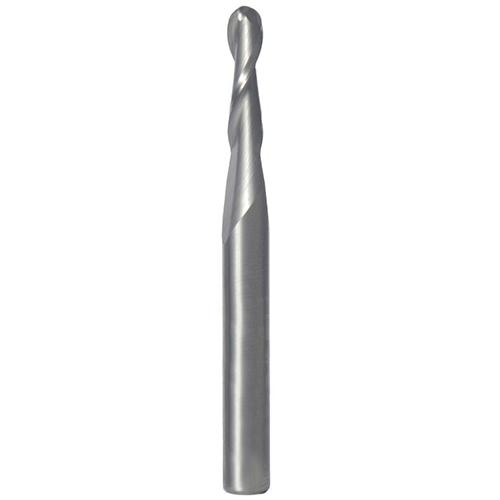

Up Cut Ballnose Spiral Bit, Solid Carbide, 3/16"CD, 2 Flute

https://www.klingspor.com/web/image/product.template/170032/image_1920?unique=e1daf12

$ 59.92 59.922000000000004 USD $ 59.92

$ 59.92

Not Available For Sale

/ EA
  • Width
  • Length
  • Shank Diameter
  • Cut Diameter
  • Cut Length
  • Max. RPM
  • Flute/Wings

This combination does not exist.

EA
Contact Us


Item Number

RU1800RN

Description

Up Cut Ballnose Spiral Bit, Solid Carbide, 3/16"CD, 2 Flute

Product Details

The upcut ballnose spiral bit is good for blind holes where you want the chips to be removed up and out of the hole. The "ballnose" is beneficial on CNC milling applications where 3D routing or carving is required, or for routing slots on inside corners with a radius, concave geometry.

Width 0.1875
Length 2.5

Specifications

Dimensions
Width 3/16 in.
Length 2-1/2 in.
Shank Diameter 1/4 in.
Cut Details
Cut Diameter 3/16 in.
Cut Length 3/4 in.
Speed Measurements
Max. RPM 24,000
Other
Flute/Wings 2
