Item Number
SC64
Description

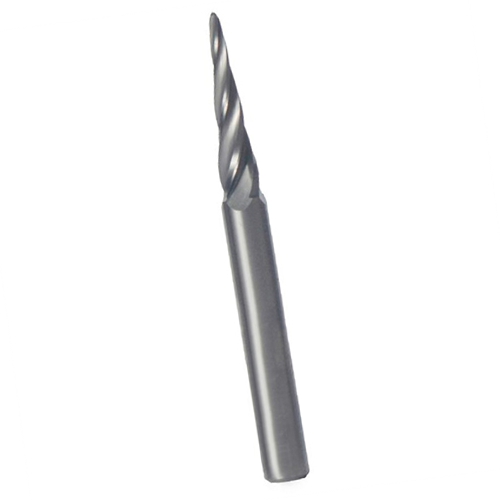

Ballnose Spiral Bit 1/16"CD, 1/32" Radius
Product Details
The upcut ballnose spiral bit is good for blind holes where you want the chips to be removed up and out of the hole. The "ballnose" is beneficial on CNC milling applications where 3D routing or carving is required, or for routing slots on inside corners with a radius, concave geometry.
| Length | 2.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-1/2 in. |
| Shank Diameter | 1/4 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 1/16 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 24,000 |
| Other | |
|---|---|
| Flute/Wings | 4 |
