Item Number
KCB-SM-4SC
Description

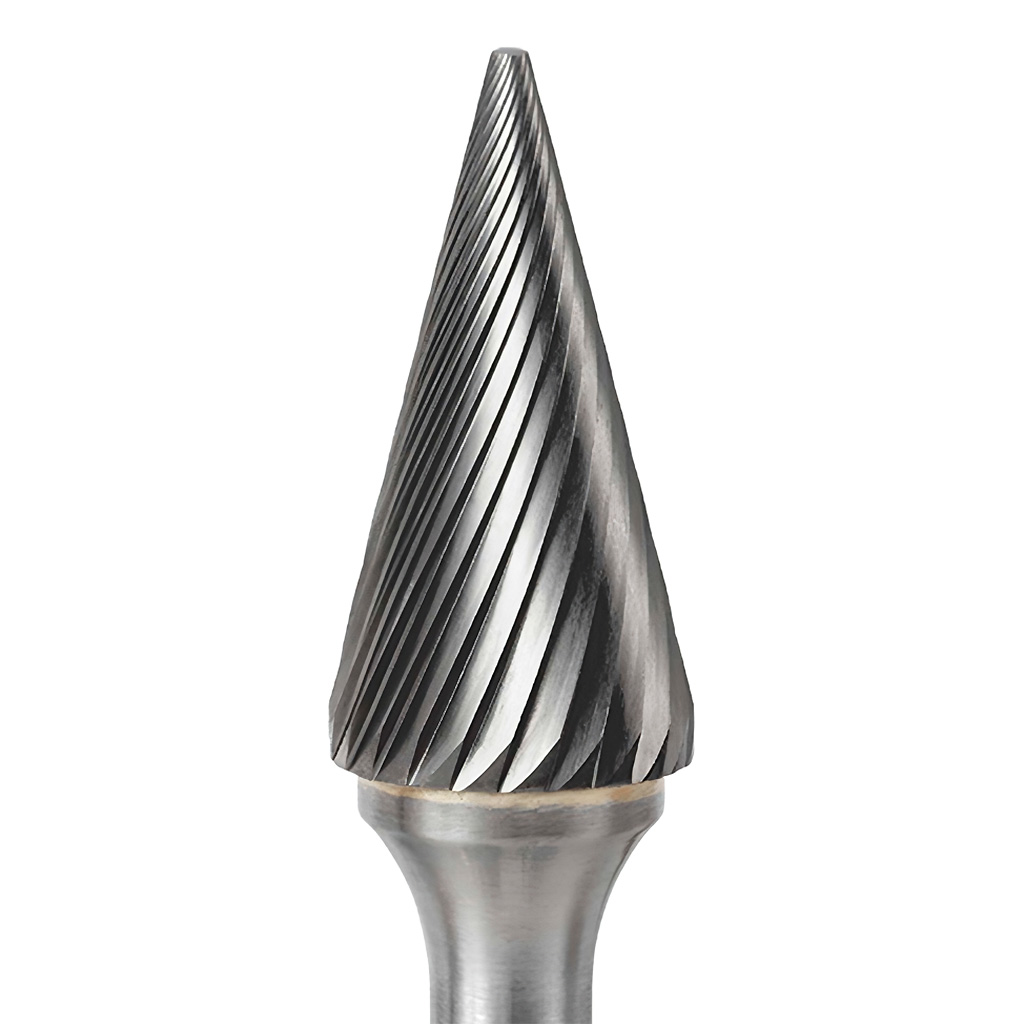

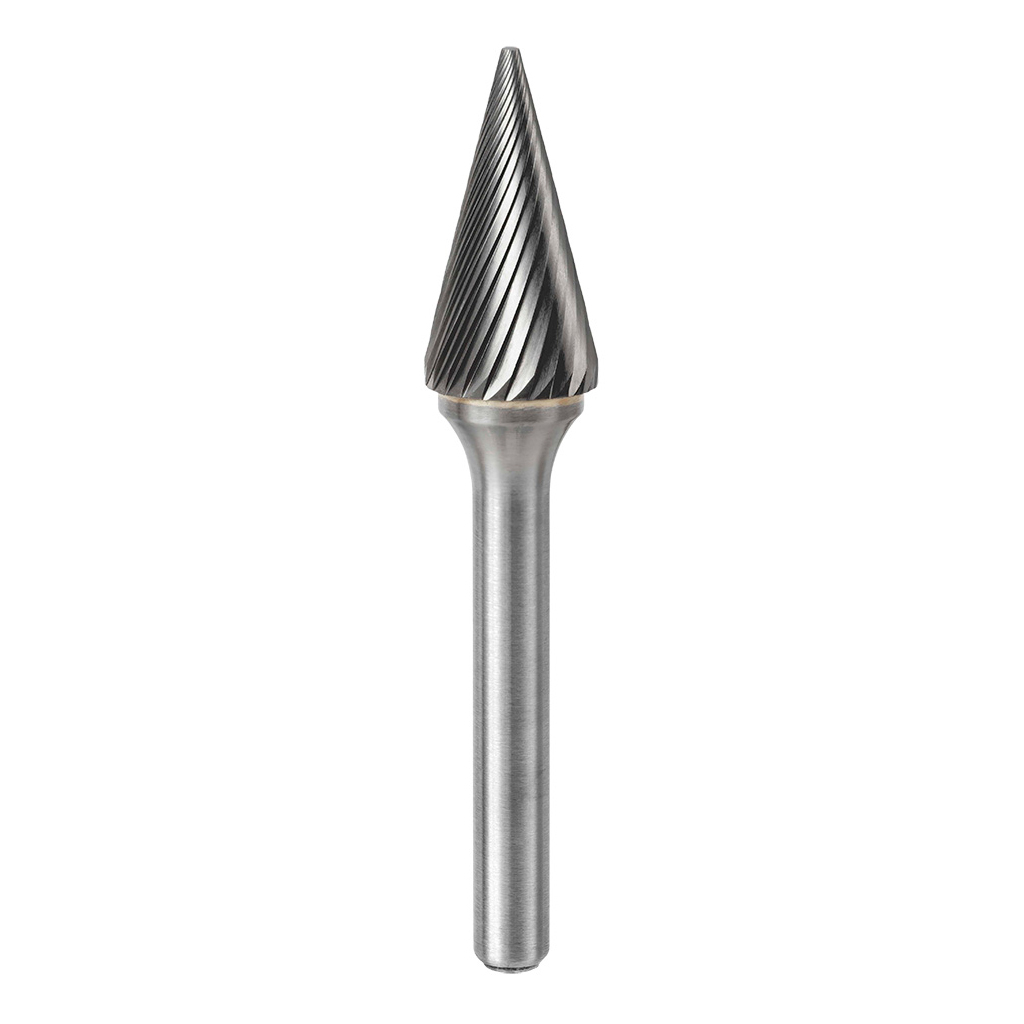

SM4 Pointed Cone Carbide Burr 3/8"x 5/8"x 1/4" Shank x 2-1/2" OAL, Single Cut
Product Details
SM carbide burrs are designed with a pointed cone. It is the tool of choice for many real-world applications, particularly on metal, steel, and cast iron. Suitable applications for SM carbide burrs include deburring and model building. When used for the latter application, the burr truly shines during work on conical holes and grooves with a beveled edge. Professionals and hobbyists both benefit from the exceptional hardness and durability of this burr.
| Width | 0.375 |
| Length | 2.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 2-1/2 in. |
| Shank Diameter | 1/4 in. |
| Applications & Recommendations | |
|---|---|
| Material Application | Steel |
| Cut Details | |
|---|---|
| Cut Type | Single Cut |
| Cut Diameter | 3/8 in. |
| Cut Length | 5/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 37,500 |
| Other | |
|---|---|
| Shape Characteristic | SM - Cone Shape |
