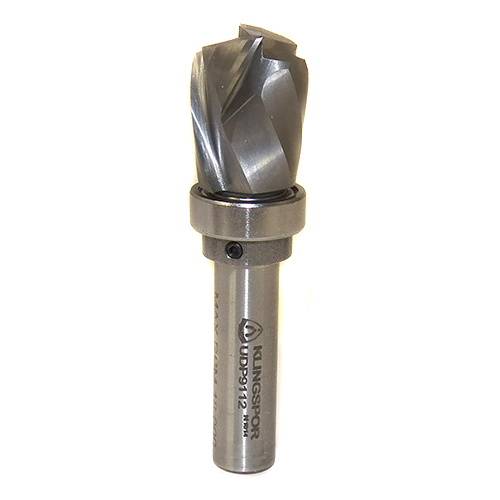

UDP9112
Up/Down Classic Ultimate Plunge/Pattern Spiral Bit 7/8"CD x 1-1/8"CL, 1/2" Shank
Item Number
UDP9112
Description
Up/Down Classic Ultimate Plunge/Pattern Spiral Bit 7/8"CD x 1-1/8"CL, 1/2" Shank
Product Details
Our Classic "ULTIMATE" Plunge/Pattern Bit has a compression design to provide the ultimate cut when using templates. These bits leave a crisp, clean edge on both the top and bottom edge of the work piece, even in difficult wood grains. Features a bottom bearing and plunge end. They are made from premium micro-grain carbide and induction brazed onto a 1/2" steel shank for enhanced strength and performance. Solid carbide, plunge/pattern, 2+2 compression spiral with 7/8" cutting diameter, 1/2" shank, 1-1/8" cutting length, and 3-1/2" overall length for use in routers with a 1/2" collet.
| Width | 0.875 |
| Length | 3.5 |
Specifications
| Dimensions | |
|---|---|
| Length | 3-1/2 in. |
| Shank Diameter | 1/2 in. |
| Cut Details | |
|---|---|
| Cut Diameter | 7/8 in. |
| Cut Length | 1-1/8 in. |
| Speed Measurements | |
|---|---|
| Max. RPM | 18,000 |
